End of Life Notice
* Effective Date: 2016/08/19

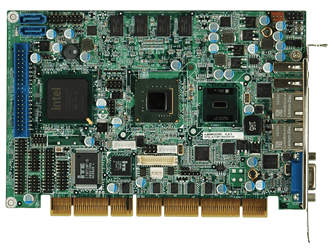

» PCISA CPU card supports four PCI and ISA expansions
» Intel® Atom™ N270 processors at 1.6GHz core speed with 533 MHz FSB and 512KB L2 cache
» 512 MB of 533 MHz DDR2 SDRAM on board
» Supports VGA, HDTV-out up to 1080i and 18-bit dual-channel LVDS with dual display support
» Two SATA, one IDE, floppy and CF Type I/II for data storage
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Intel® Atom™ N270 processors at 1.6GHz core speed with 533 MHz FSB and 512KB L2 cache
» 512 MB of 533 MHz DDR2 SDRAM on board
» Supports VGA, HDTV-out up to 1080i and 18-bit dual-channel LVDS with dual display support
» Two SATA, one IDE, floppy and CF Type I/II for data storage
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| System | CPU |
|---|---|
| Chipset | Intel® 945GSE + ICH7M |
| Memory Max. |
On-board 512 MB DDR2 533 MHz memory One 200-pin (system memory max. 2GB) 533MHz DDR2 SDRAM DIMM supported |
| CPU Socket | On Board |
| I/O Interface | Ethernet |
| Digital I/O | 1 x 8-bit digital I/O (2x5 pin) |
| Display |
VGA integrated in Intel® 945GSE HDTV/TV supports NTSC/PAL and HDTV resolution up to 1080i 18-bit dual-channel LVDS |
| Audio |
Supports 7.1 channel HD audio or 5.1 channel AC’97 audio by IEI audio kits |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 10% ~ 95%, non-condensing |
| Option | iRIS |
| Storage | Storage |
| Expansion Slots | Expansion Slots |
| Watchdog Timer | Watchdog Timer |
| CPU Cooler | CPU Cooler |
| I/O Interface | I/O Interface |
| 1 x Internal RS-232 | |
| 1 x Internal RS-232/422/485 | |
| 4 x Internal USB 2.0 | |
| 1 x LPT |
Ordering Information
| PCISA-945GSE-N270-512MB-R11 | PCISA CPU CARD with Intel ATOM N270 1.6G,512MB memory on board,VGA/LVDS/HDTV,Dual PCIe GbE,SATA,USB 2.0,CF and Audio,RoHS |
|---|
