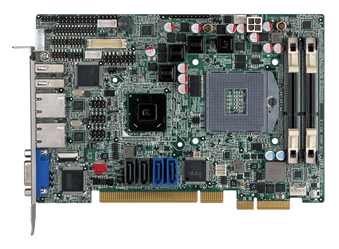

Half-size PCIe CPU Card supports Socket 988B Intel® Mobile Core™ i7/i5/i3 or Celeron® CPU with Intel® HM65

  • Overview

    ● Half-size PCIe CPU card supports Socket G2 32nm Intel® Core™ i7/i5/i3 or Celeron® processor
    ● Up to 16 GB 1333/1066 MHz dual-channel DDR3 SDRAM
    ● Supports 18/24-bit dual-channel LVDS and analog CRT output
    ● High-speed I/O interface provided through the 2nd gen PCIe add-on card and SATA 6Gb/s connectors
    ● Rich media acceleration for hardware encoding and decoding
    ● TPM V1.2 hardware security provided by the TPM module
    ● IEI One Key Recovery solution allows you to create raipd OS backup and recovery
  • Specifications

    • Hardware Spec.

      Spec Item Description
      CPU Intel® Mobile Core™ i7/i5/i3/Celeron® CPU
      Chipset Intel® HM65
      Memory Max. Two 204-pin 1333/1066 MHz dual-channel DDR3 SO-DIMMs supported (system max.
      CPU Socket Socket 988B
      I/O Interface
      Ethernet LAN1: Realtek RTL8111E GbE controller with ASF 2.0 support
      LAN2: Realtek RTL8111E GbE controller
      Digital I/O 8-bit digital I/O (4-bit input, 4-bit output)
      Display Dual display supported
      1 x VGA (up to 2048 x 1536 @75Hz)
      1 x 18/24-bit dual-channel LVDS (up to 1920 x 1200 @60Hz)
      Audio Supports 7.1 channel HD audio by IEI AC-KIT-892HD-R10 kit
      I/O Interface
      I/O Interface 2 x Internal RS-232
      1 x Internal RS-422/485
      6 x Internal USB 2.0
      1 x KB/MS
      1 x LPT
      2 x USB 2.0
      Power consumption 5V@3.99A, 12V@0.43A, Vcore_12V@3.80A, 5VSB@0.06A
      (2.70GHz Intel® Core™ i7-2620M with two 2GB 1333MHz DDR3 memory)
      Operating Temperature -10°C ~ 60°C
      Humidity 10% ~ 95%, non-condensing
      Storage 1 x SATA 3Gb/s
      1 x SATA 6Gb/s
      Expansion Slots
      Expansion Slots PCIe signal and PCI signal via golden finger
      Watchdog Timer
      Watchdog Timer Software programmable supports 1~255 sec. system reset
    • Ordering Info.

      Item No. Description
      PICOe-HM650-R10Half-size PCIe CPU card supports 32nm Socket G2 Intel® mobile Core™ i7/i5/i3 CPU per Intel® HM65 PCH,VGA/LVDS,Dual PCIe GbE,SATA 6Gb/s and HD Audio,RoHS
    • Package Contents

      • 1 x PICOe-HM650 single board computer

      • 2 x SATA cable

      • 1 x Dual RS-232 cable

      • 1 x Mini jumper pack

      • 1 x USB cable

      • 1 x QIG
