PCIE-Q870

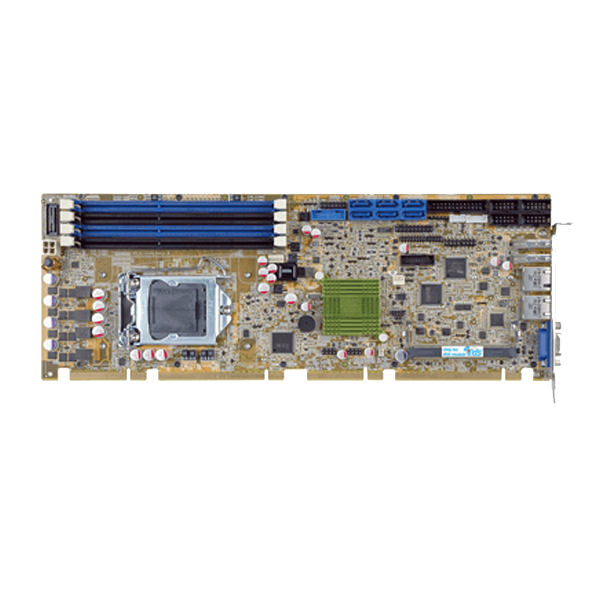

Full-size PICMG 1.3 CPU card supports LGA 1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® Q87

End of Life

End of Life Notice

* Effective Date: 2023/07/04

» PICMG 1.3 full-size graphic grade solution
» LGA 1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
» Four 240-pin 1600/1333 MHz dual-channel DDR3 DIMMs support up to 32 GB memory
» Supports dual independent display by VGA & iDP interfaces
» Supports PCIe Mini devices and mSATA via PCIe Mini socket
» Intel® PCIe GbE with Intel® AMT 9.0 support
» Supports RAID function via SATA 6Gb/s
» TPM v1.2 hardware security function supported by TPM module
» Stiffener bars
» IEI jumper-less function
» Supports IPMI 2.0 via iRIS-2400 module

Hardware Spec.

System
CPU LGA 1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
Chipset Intel® Q87
Memory Four 240-pin 1600/1333 MHz dual-channel unbuffered DDR3 & DDR3L SDRAM DIMMs
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 338 X 126
Net Weight 420g
Storage
Storage 1 x mSATA
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x iDP :for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet Description: LAN1: Intel® I217LM with Intel® AMT 9.0 support
LAN2: Intel® I210-AT PCIe controller with NCSI support
Audio Description: Supports 7.1-channel HD Audio by IEI AC-KIT-892HD-R10 kit
I/O Interface 4 x Internal RS-232 :2x5 pin, p=2.54
1 x Internal RS-422/485 :1x4 pin, P=2.0
2 x External USB 3.2 Gen1x1
8 x Internal USB 2.0 :4 X 2x4 pin, p=2.54, 4 X Golden finger
2 x Internal USB 3.2 Gen1x1 :2x10 pin
1 x PS/2 :1x6 pin
1 x LPT :2x13 pin
Expansion Description: PCIe signal and PCI signal via golden finger
1 x PCIe mini Card Slot :supports mSATA
Other Features
iRIS 1 X iRIS-2400 slot
TPM 2x10 pin
Power
Power Consumption 5V@3.55A, 12V@0.37A, Vcore_12V@7.61A, 3.3V@1.55A, 5VSB@0.13A (Intel® Core™
i7-4770K 3.90 GHz CPU with 16 GB (4x4 GB) 1333 MHz DDR3 memory)
Power Supply 5V/12V, Support AT/ATX mode
Environment
Operating Temperature -20°C ~ 60°C
Storage Temperature -30°C ~ 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

PCIE-Q870-i2-R10 Full-size PICMG 1.3 CPU Card supports LGA1150 Intel Core™ i7/i5/i3/Pentium and Celeron CPU per Intel Q87,DDR3,VGA,IDP,Dual Intel PCIe GbE,SATA III,mSATA, mini PCIe,RS-232, Audio, iRIS-2400 and RoHS

Package Contents

Package Content
  • 1 x PCIE-Q870-i2 single board computer

  • 1 x Dual RS-232 cable

  • 2 x SATA cable

  • 1 x USB 2.0 cable

  • 1 x QIG
