- Zusatzkarte
- ...

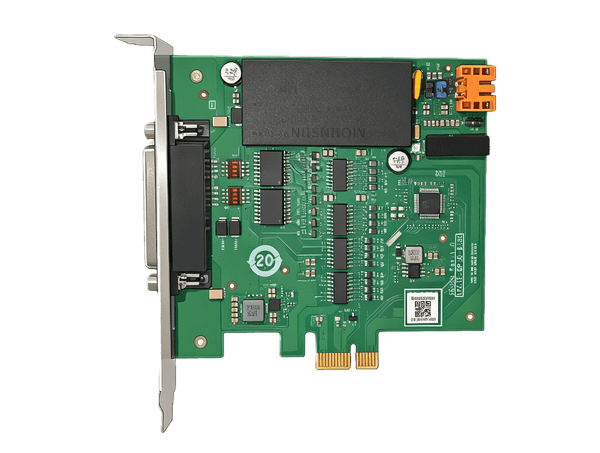

IPCIE-GPIO-8I8O
» PCI Express® x1 lane interface.
» 8-channel isolated digital inputs and 8-channel isolated digital outputs.
» Supports 5 V, 12 V, and 24 V external output power supplies.
» 2500 VRMS optical isolation.
» Source current up to 40 mA on a single isolated output.
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | PCI Express® x1 |
| System | |
|---|---|
| Chipset | Fintek F81508 (PCI Express Bridge to GPIO) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 100 x 101 mm |
| Net Weight | 0.11kg |
| I/O Interface | |
|---|---|
| I/O Interface | GPIO : 1 x DB44 (via cable to 2 x DB9, for isolated digital I/O) Input channels: 8 Input voltage range: 0-24 VDC Input high level: 2-24V Input low level: 0-1.5V Input type: single-ended, positive logic, polarity-sensitive Isolation voltage: 2500 Vrms Output channels: 8 Output voltage: 5 / 12 / 24 VDC (24V only external power supply) Output type: high-side sourcing transistor Isolation voltage: 2500 Vrms Source current: up to 40 mA per channel @ 100% duty Max. total current: 10 mA per channel at 24 V when all 8 channels are ON (80 mA total) @ 100% duty |
| Environment | |
|---|---|
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 80°C |
| Humidity | 5% ~95%, non-condensing |
| Certifications | |
|---|---|
| Safety & EMC | CE/FCC compliant |
