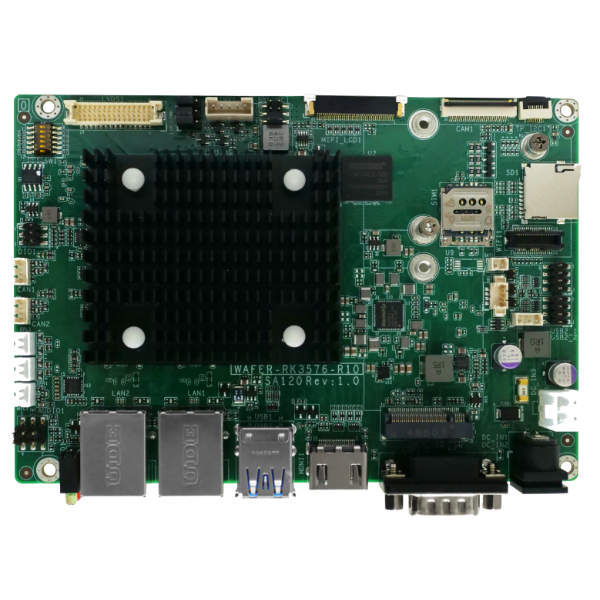

WAFER-RK3576
» Rockchip RK3576 (Quad-code Cortex-A72@2.3GHz + Quad-code Cortex-A53@2.2GHz)
» On-board 8GB LPDDR5, Up to 16GB
» Triple independent display via HDMI2.0, MIPI-DSI and LVDS
» Support Dual YT8531C 1GbE LAN
» Support M.2 B key and B to B Connector expansion
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | 3.5 SBC |
| System | |
|---|---|
| CPU | Rockchip RK3576 (Quad-code Cortex-A72@2.3GHz + Quad-code Cortex-A53@2.2GHz) |
| Memory | On-board 8GB LPDDR5 |
| Memory Max. | up to 16GB |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 146mm x 102mm |
| Net Weight | GW:850g / NW:350g |
| I/O Interface | |
|---|---|
| Display Output | 1 x HDMI™ : 2.0 |
| 1 x LVDS | |
| 1 x MIPI DSI : 40Pin 0.5mm FPC | |
| Ethernet | 2 x LAN : YT8531C 1GbE LAN |
| Audio | HD Audio - 1 x Line out+Mic, 2x3 pin header 1 x 2pin Socket for Speaker (1x 3W: RL=4Ω) 1 x MIC (Wire to Board,WAFER 1 X2pin, DIP, 180°, P=1.25mm) |
| I/O Interface | External RS-232 : 2 x RS-232/485 By 1 x BD9 Port |
| 2 x External USB 3.2 Gen1x1 : Type-A, 5Gb/s | |
| 5 x Internal USB 2.0 - 4 x USB 2.0 (2x4 pin, P=2.0) 1 x USB for touch |
|
| 1 x DIO : 4-bit GPIO | |
| Other Features | |
|---|---|
| Camera | 1 x MIPI CSI 4Lanes x 1 (30pin 0.5mm FPC) |
| Power | |
|---|---|
| Power Consumption | 12V@2.052A (Rockchip RK3576 CPU with LPDDR5 8GB memory) |
| Power Supply | 12V DC IN, DC JACK/Terminal Block Colay Design |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Card Slot Interface | |
|---|---|
| M.2 | 1 x M.2 B key 3042/3052/2280 (PCIe Gen2 x1 & USB 2.0) 1 x On-board SIM card socket (hinge type) for M.2 B key 1 x B to B Connector (Support iWB-RTL8822/iWB-BCM43752) |
