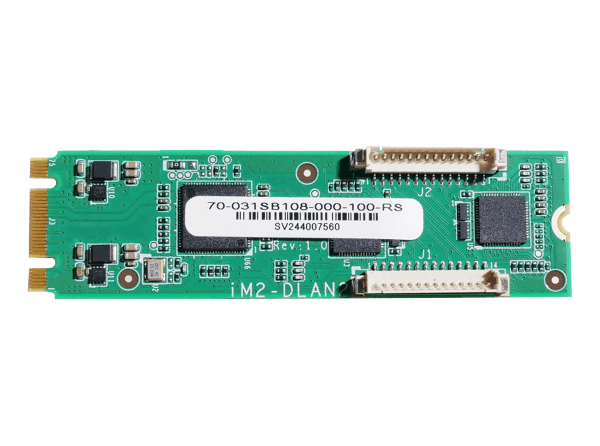

» M.2 B Key + M Key card supports dual Intel 2.5 GbE LAN
» Support link aggregation/jumbo frames (9 Kbyte)
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | M.2 B/M key 2280 |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 22mm x 80mm |
| Net Weight | GW: 100g / NW: 50g |
| I/O Interface | |
| Ethernet |
Description: Speed 100/1000/2500 Mbps External IO 2 x RJ-45 Internal IO 2 X 14-pin LAN port |
|
2 x LAN - LAN1: Intel® I226-V controller LAN2: Intel® I226-V controller |
|
| Environment | |
| Operating Temperature | -10°C ~ 65°C |
| Storage Temperature | -20°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| iM2-DLAN2-R10 | M.2 B Key + M Key card (2280) supports dual Intel 2.5 GbE LAN, RoHs |
|---|
Package Contents
| Package Content |
|
|---|
