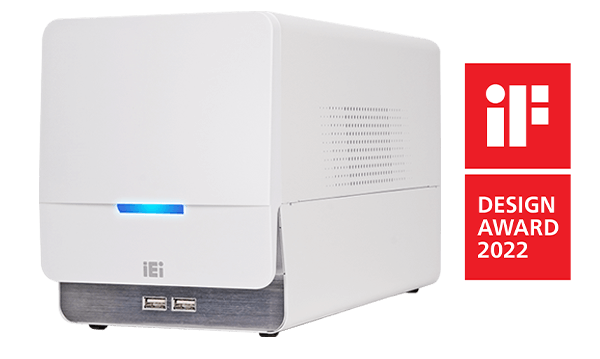

AI box PC with 10.1” touch panel and 13th generation Intel® Core™ i9 processor

» Intel® Core™ i9 processor
» 10.1” front panel with P-CAP touch
» Expansion slots for GPU and add-on cards
» Compatible to Nvidia Quadro RTX Ampere series GPU
» Support M.2 Gen4 x4 NVMe SSD
» Support 4 x DDR5

Hardware Spec.

LCD Size 10.1”
LCD Resolution 1920 x 1200
LCD Brightness (cd/m²) 600
LCD Contrast Ratio 900:1
LCD Color 16.7M (8-bit)
LCD Pixel Pitch (mm) 0.03764 x 0.11292
LCD Viewing Angle (H-V) 160°/160°
Touch Screen Projected capacitive type with 10-point multi-touch
Touch Controller ILI
Touch Surface Hardness 6H
Processor Intel® Core™ i9 processor
Chipset Intel® R680E
GPU Compatible with NVIDIA Quadro RTX Ampere series GPU
Ethernet Controller Intel® I225-V
Storage M.2 2280 NVMe Gen4 x4 SSD
RAM 4 x 288-pin dual-channel DDR5 U-DIMM, up to 4400MHz, ECC & non-ECC un-buffered memory (system max. 128GB)
Expansion Slots
Expansion Slots 1 x PCIe Gen4 x16 slot for GPU
2 x PCIe Gen4 x4 slot for add-on cards
1 x M.2 2280 PCIe Gen4 x4 M key slot for SSD
Speaker 2 x 3W speaker
I/O Interface
Front I/O 2 x USB 3.2 Gen 2
Rear I/O 1 x HDMI output
1 x AC IN
1 x Speaker
1 x Microphone
2 x 2.5 GbE LAN
4 x USB 3.2 Gen 2
Buttons 1 x System power button (with power LED)
1 x Power supply swich
Indicators Power LED
Physical Characteristics
Color White
Thermal Smart fan
Construction Material NCT(N); SECC
Weight (Net) (kg) 7.68
Dimensions (LxWxH) (mm) 310 x 203 x 390
Input 115V AC – 264V AC medical grade ATX power
Output 700W medical power adapter
Operating Temperature 0°C ~ 40°C
Storage Temperature -20°C ~ 65°C
Humidity 10% – 95% (non-condensing)
Vibration 1G
Operating Shock 5G peak acceleration (11ms duration)
Non-operating shock 15G peak acceleration (11ms duration)
Safety & EMC CE,
FCC Class B Part18,
UL 60601-1,
IEC/EN 60601-1,
IEC/EN 60601-1-2

Ordering Information

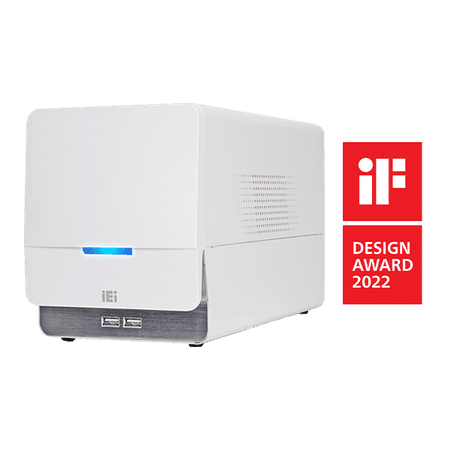

HTB-230D-R680E-R10 Medical AI Box PC, 10.1" panel, PCAP touchscreen, w/o CPU, w/o GPU card, w/o DDR5, w/o M.2 SSD, one PCIe Gen 4 x16 slot, two PCIe Gen 4 x4 slots, 700W medical power adapter, R10, RoHS

Package Contents

Package Content
  • 1 x European power cord (183 cm, C13)
