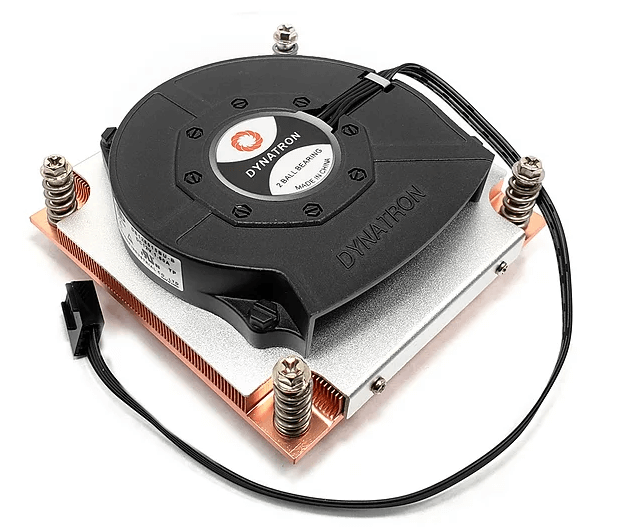

19100-000312-00-RS

LGA1200 CPU cooler, RoHS

High performance thermal solutions

Hardware Spec.

General
Operating temperature 0°C ~ 40°C
Description
Description For special models: IMBA-Q470 & IMBA-Q471
CPU Solution
CPU Solution Intel® Core™ i9/i7/i5/i3
Socket Solution
Socket Solution LGA 115X/1200
Dimensions
Dimensions 92.5 x 90 x 30.15 mm
Material
Material Al
Bearing Type
Bearing Type Two-Ball
Capability (Watt)
Capability (Watt) 125W
Fan Speed (RPM)
Fan Speed (RPM) 7000
Noise Level (dBA)
Noise Level (dBA) 59
Life Expectancy (hrs)
Life Expectancy (hrs) 80000
Weight
Weight 435g
Key Features
Key Features LGA1200 CPU cooler, RoHS

Ordering Information

19100-000312-00-RS SAO8;COOLER MODULE;HEATSINK+FAN:92.5*90*30.15mm;STANDARD;00;;DYNATRON:T498 COOLING FAN;FAN:12V,4P,225MM,7000RPM,2 BALLS BEARING;DYNATRON;DB128015BU-B;CCL;RoHS
