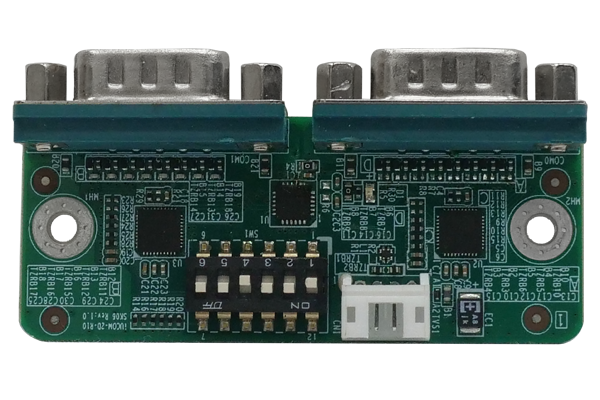

USB Module supports two RS-232/422/485 Port (DB-9), RoHs

» Two-ports RS-232/422/485 (DB-9)
» 1024 bytes transmit/ 512 bytes receive FIFO
» High-speed 16C550/16C650/16C750/16C850 compatible UARTs
» Baud rate supports 115.2K, max. up to 6M

Hardware Spec.

Form Factor
Form Factor USB2.0 (1*4pin, P=2.0)
* USB Bridge to Quad Serial Port: WCH CH342
* Buffer/Transceiver Series: F81435
Physical Characteristics
Dimensions (LxWxH) (mm) 65mm * 35mm
I/O Interface
I/O Interface 2 x External RS-232/422/485 : DB-9
Operating Temperature 0°C – 60°C
Storage Temperature -30°C –70°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

iUCOM-2D-R10 USB Module supports two RS-232/422/485 Port(DB9), RoHs

Package Contents

Package Content
  • 1 x iUCOM-2D peripheral board

  • 1 x QIG

  • 1 x USB Cable(P=2.0)

  • 1 x USB Cable(P=2.54)
