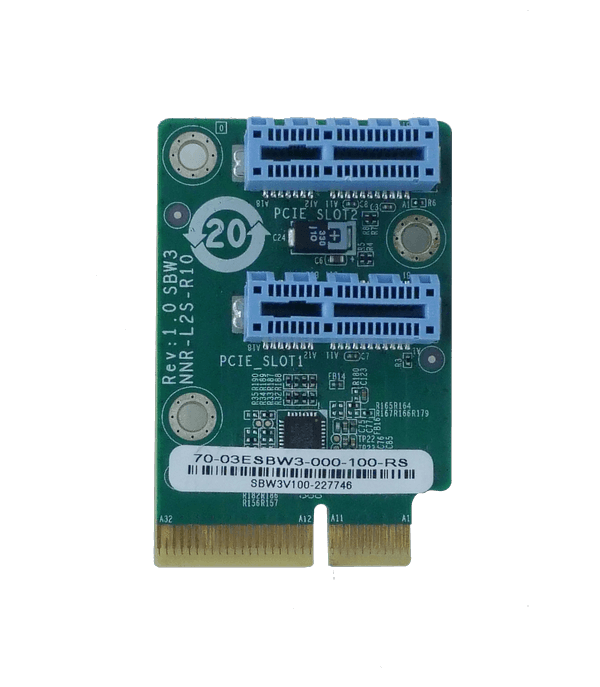

PCIe x2 to two PCIe x1,the left side
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 40 mm * 60 mm |
| I/O Interface | |
| Expansion | 2 x PCIe x1 : x1 signal |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5 ~ 95% non-condensing |
| Card Slot Interface | |
| PCIe | PCIe x2 |
Ordering Information
| NWR-L2S-R10 | PCIe x2 to two PCIe x1 riser card for NANO/WAFER on the left side |
|---|---|
| NWR-L2S-N-R10 | PCIe x2 to two PCIe x1 riser card for NANO on the left side |
Package Contents
| Package Content |
|
|---|
