New Advanced Industrial ATX Motherboard

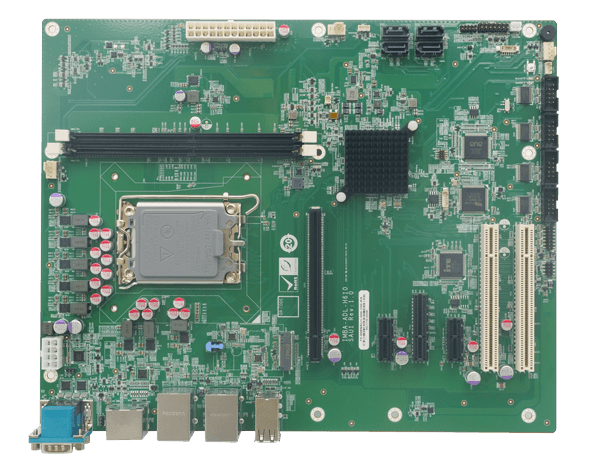

IMBA-ADL-H610 is IEI's cost-effective ATX industrial motherboard. It is able to support both 12th and
13th Gen Intel® Core™ processors and equipped one PCIe Gen4 x16 to deploy and run your AI projects
in retail, transportation and surveillance efficiently. It drives a New Era in AIoT Solution.
Improved Efficiency and Performance with
12th/13th Gen Intel® Processors
IEI's IMBA-ADL-H610 motherboard supports both 12th and 13th Gen Intel® Core™ processors, and the performance boosts up to 1.36x times faster in single-thread performance and up to 1.35x times faster in multi-thread performance than 10th Gen Intel® Core™ Processors. The 12th Gen Intel® Core™ platform supports up to 16 cores and 24 threads, enhanced AI, and Intel® UHD Graphics 770 driven by Intel® Xe Architecture. It also features innovative high-performance chip design, enhanced graphics performance, fast AI with hardware acceleration and real-time capabilities to help expand your IoT potential. With increased I/O capacity and the latest PCIe 4.0 support, these processors deliver the performance required to consolidate industrial multiple workloads.
Because of the above features, the IMBA-ADL-H610 is suitable for edge computing, industrial automation, medical equipment, machine vision, automated test equipment, smart factory and much more.
faster single-thread performance
faster multi-thread performance
Triple Display with Stunning 4K Resolution
The Intel® 12th generation processors is integrated with Intel® UHD Graphics 770, which offers up to 32 EUs to drive a maximum resolution of 4kp60. Equipped with one HDMI 1.4 (up to 4096 x 2160@30Hz), one DP 1.4 (up to 4096 x 2160 @60Hz) and the option to use the iDPM 3040 slot (only for IEI eDP/LVDS/VGA module) to support triple independent displays, the ATX motherboard brings more possibilities to upgrade IoT devices at the edge.
faster multi-thread performance
Free to choose display connections with iDPM modules
More display I/Os are supported via IEI iDPM connector. The iDPM display converter boards allow theIMBA-ADL-H610 to meet customers’ diverse display interface requirements such as the legacy display port, VGA and LVDS, or eDP for TFT LCD connection.
eDP to 24-bit dual channel
LVDS converter board
eDP to eDP converter board
eDP to VGA converter board
Makes adequate AIoT application in practice
With powerful AI computing performance, graphics-rich performance of multi-display connection, and flexible expansion slots, the IMBA-ADL-H610 ATX motherboard makes adequate AIoT application in practice, such as industrial automation, smart factory, data analysis, video surveillance, computer vision, and medical imaging. All features plus its stability and reliability enable it an ideal platform for AIoT edge development.
Support PCIe Gen4,
Also Has PCI to Work with Legacy Systems
The IMBA-ADL-H610 equips one PCIe Gen4 x16, one PCIe Gen3 x4 (open-end), two PCIe Gen3 x1, and two PCI expansion slots, providing not only high-level PCI Express connectivity, but also PCI to work with legacy systems. This ATX motherboard is AI edge ready, and supports IEI's AI accelerators, Mustang series. IEI Mustang AI accelerators can bring much larger and computationally-intensive neural networks to the edge, and they are ideal for deep learning inference computing to help you get faster, deeper insights for your customers and your business.
High Speed Transmission
Dual USB 3.2 Gen 2 (10Gb/s)
Dual USB 3.2 Gen 2x1 (10 Gb/s) ports are integrated to support high density data transmission, the device can be connected in any way.
Four SATA 6Gb/s
Twice as fast data processing, it is capable of delivering lightning fast data transfer experience for edge AI data process applications.
Delivers Low-Latency 2.5G LAN Powered by Intel
The on-board Intel® I225V 2.5GbE controller enable the IMBA-ADL-H610 to meet the bandwidth-intensive requirements such as large file transfers and high-resolution video streaming applications.
|Form Factor||ATX Motherboard|
|CPU||LGA1700 socket supports 12th/13th generation Alder Lake-S/Raptor Lake-S Intel® Core™ i9/i7/i5/i3/Pentium®/Celeron® Processor (up to 65W TDP CPU)|
|Memory||Two 288-pin Dual-Channel DDR4 (up to 3200 MHz) SDRAM Unbuffered DIMMs supported up to 64GB|
|Cooling method / System Fan||
1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
|Dimensions (LxWxH) (mm)||244mm x 305mm|
|Storage||4 x SATA : RAID 0/1/5/10 supported|
|Display Output||1 x HDMI : up to 4096 x 2304 @30Hz|
|1 x Display Port : up to 4096 x 2304 @60Hz|
|1 x iDPM : support iEi eDP/ LVDS/ VGA module|
2 x LAN -
LAN1: Intel® I219 LM controller
LAN2: Intel® I225V 2.5GbE controller (CO-LAY I225-LM support vPro)
|Audio||1 x HD Audio : 1 x iAUDIO supports IEI AC-KIT-888S Audio Kit (2x5 pin)|
|I/O Interface||2 x External RS-232/422/485 : RS-485 support AFC|
|4 x Internal RS-232 : 2x5 pin, P=2.54|
|4 x External USB 2.0|
|2 x External USB 3.2 Gen1x1 : 5Gb/s (Type A)|
|2 x Internal USB 2.0 : 2:x4 pin, P=2.54|
|2 x External USB 3.2 Gen2x1 : 10Gb/s (Type A)|
1 x PCIe x16 : Gen4 slot with x16 Signal
(**Intel® recommends that Alder Lake-S CPU PCIe ports are only used for discrete graphics and storage devices)
|1 x PCIe x4 : Gen3 open-end|
|2 x PCIe x1 : Gen3|
|2 x PCI Slot|
3.3V@0.36A, 5V@7.04A, 12V@5.62A, 5VSB@0.7A
(Intel® Core™ i7-12700E CPU with two 32 GB 2933 MHz DDR4 memory, EuP mode enabled)
ATX/AT power supply
Support AT/ATX mode
|Humidity||5% ~95%, non-condensing|
|IMBA-ADL-H610-R10||ATX motherboard supports LGA1700 Intel® 12th/13th Generation Core™ i9/i7/i5/i3, Pentium® and Celeron® processor, DDR4, Triple independent displays, dual LAN, USB 3.2, SATA 6Gb/s and RoHS|
