EMB-WIFI-KIT02I3

M.2 A/E Key WI-FI 6E module kit

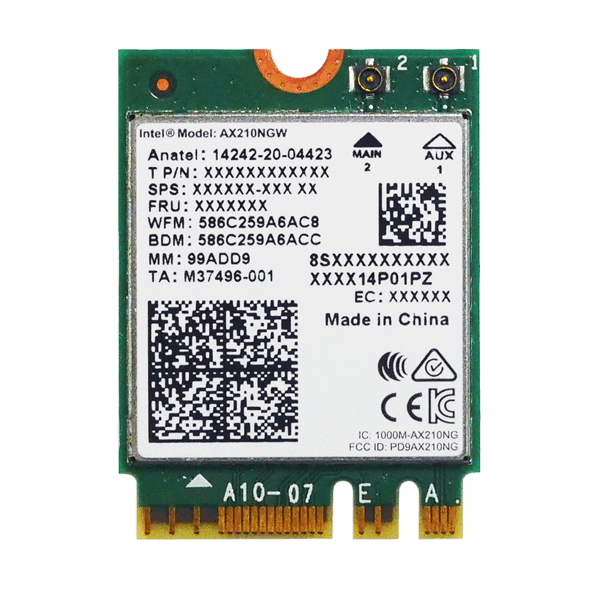

EMB-WIFI-KIT02I3 M.2 AE Key wifi module kit
  • EMB-WIFI-KIT02I3 M.2 AE Key wifi module kit
» M.2 2230 AE Key form factor
» High speed wireless connection,WI-FI 6E
» Low power consumption and high performance
» Fully qualified Bluetooth 5.2
» Solid design with external antenna diversity

Specifications

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 22mm x 30mm x 2.4mm
Net Weight 3.28g



Wireless
Wi-Fi Frequency range: 5GHz/6GHz
Bluetooth Frequency range: 2402MHz~2483MHz
Others
  • Standard: IEEEE802.11a/b/g/n/ac/ax, M.2 AE Key Wireless LAN & Bluetooth 5.2
  • Major chipset: Intel® AX210
  • Antenna: 2 x Internal and external combined antenna
  • Driver support: Windows® 10/11, Linux
Environment
Operating Temperature 0°C ~ 70°C

Ordering Information

EMB-WIFI-KIT02I3-R10 2T2R M.2 wifi module kit for embedded system, IEEEE802.11a/b/g/n/ac/ax, 1 x M.2 AE Key Wireless LAN & Bluetooth 5.2;Intel;AX210.NGWG Module, 2 x RF cable , 2 x Antenna; RoHs
