KINO-DH420

Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3/ Pentium®/Celeron® processor, DDR4, dual independent displays, triple 2.5 GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

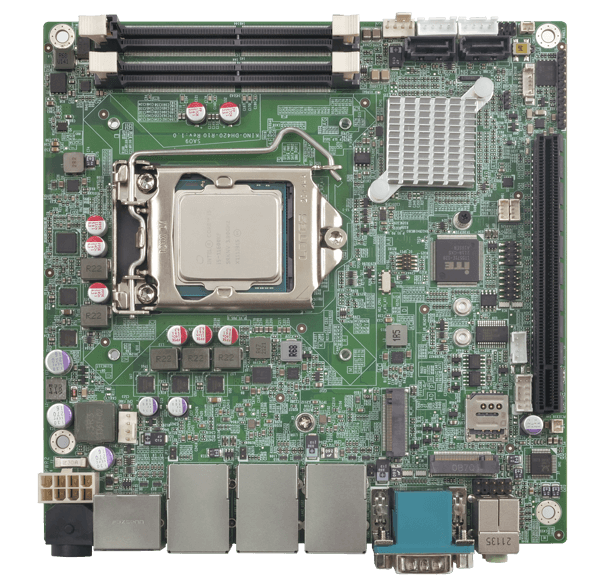

KINO-DH420 Mini-ITX SBC
KINO-DH420 Mini-ITX SBC
KINO-DH420 Mini-ITX SBC
  • KINO-DH420 Mini-ITX SBC
  • KINO-DH420 Mini-ITX SBC
  • KINO-DH420 Mini-ITX SBC
1. LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
2. Support triple Intel® 2.5Gb Eethernet controller
3. Support HDMI, DP display output
4. Support 1 x PCIe Gen3 x16, 1 x M.2 A key, 1 x M.2 B key expansion
  • 2 x SATA 6Gb/s & Power

  • Intel® H420E

  • Dual-channel DDR4 Boost

    Two 260-pin 2933 MHz dual-channel DDR4 SO-DIMMs supporting up to 64 GB

  • LGA1200 socket for 10th Gen Intel® Core™, Pentium® and Celeron® processors

  • PCIe Gen3 x16

  • M.2 Expansions

    M.2 B key (3042/3052/2242/2280) (USB 2.0+PCIe Gen3 x2 Mode)

  • M.2 A key (2330)
    (USB 2.0+PCIe Gen3 x1 Mode)

  • 2.5G Network Solution

    Triple 2.5GbE LANs

  • 1
    2 x SATA 6Gb/s & Power
  • 2
    Intel® H420E
  • 3
    Dual-channel DDR4 Boost
    Two 260-pin 2933 MHz dual-channel DDR4 SO-DIMMs supporting up to 64 GB
  • 4
    LGA1200 socket for 10th Gen Intel® Core™, Pentium® and Celeron® processors
  • 5
    PCIe Gen3 x16
  • 6
    M.2 Expansions
    M.2 B key (3042/3052/2242/2280)(USB 2.0+PCIe Gen3 x2 Mode)
  • 7
    M.2 A key (2330)
    (USB 2.0+PCIe Gen3 x1 Mode)
  • 8
    2.5G Network Solution Triple 2.5GbE LANs
  • 8-bit x GPIO
  • RS-422/485
  • Front Panel
  • 2 x USB 2.0
  • 1 x RS-232
  • Audio
  • 2 x RS-232
  • 3 X 2.5GbE
  • 4 x USB 3.2 Gen 1
  • 2 x USB 2.0
  • HDMI
  • DP
  • 12V DC Input
  • 1
    8-bit x GPIO
  • 2
    2 x USB 2.0
  • 3
    1 x RS-232
  • 4
    RS-422/485
  • 5
    RS-422/485
  • 6
    8-bit x GPIO
  • 7
    Audio
  • 8
    2 x RS-232
  • 9
    4 x USB 3.2 Gen 1
  • 10
    2 x USB 2.0
  • 11
    HDMI
  • 12
    DP
  • 13
    12V DC Input

Enhanced Performance

The performance boosts up to 80% better than previous generation on i5 processor. The 10th Gen Intel® Core platform supports up to 10 cores and improved performance over Coffee Lake-Refresh. With increased I/O capacity and the latest DDR4-2933 memory support, these processors deliver the performance required to consolidate industrial multiple workloads.

High Speed Transmission

Delivers Triple Low-Latency 2.5G LAN Powered by Intel

The on-board triple Intel® I225V 2.5GbE controllers enable the KINO-DH420 to meet the bandwidth-intensive requirements such as large file transfers and high-resolution video streaming.

Multi-tasking

IEI KINO-DH420 features unprecedented network connectivity with three rear 2.5 Gigabit LAN ports, and it is small enough to fit into any space confined situations.

Dual Independent Display

Delivers HDMI+DP 4K Resolution for Real-time Monitoring

Running with Intel® UHD Graphics of 11th Gen processor at 800 MHz allows the system to display videos and images in stunning 4K resolution via HDMI 1.4b and DP 1.4 dual independent display. The enhanced visual quality responses the demand of high precision display.

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily.

Multiple Expansion Capabilities

M.2 2230 A Key for Wi-Fi / Bluetooth

The M.2 2230 A key slot carrying with PCIe Gen3 x1 and USB 2.0 signals allows it to adopt the latest Wi-Fi 6E technology. Wi-Fi 6E enhances low latency and supports service levels that are equivalent to 5G networks.

Multi-functional M.2 B Key Slot

The KINO-DH420 also offers one M.2 3042/3052/2242/2280 B key socket supporting AI accelerator / NVMe SSD as well as SIM card slot for LTE deployment.

*Among the following three options (A, B & C), only one function can be adopted.

A
M.2 B Key (3042/3052) with SIM Slot for LTE Communications

The M.2 B key (3042/3052) socket supporting PCIe Gen3 x2 and USB 2.0 signals allows you to use a dedicated LTE radio frequency to ensure secure and delay-free data transmission in smart manufacturing.

B
M.2 2242/2280 B Key for NVMe SSD

The M.2 2242/80 B key socket with PCI Gen3 x2 bandwidth supports up to 16Gbps data-transfer speeds. The sequential read/write speed is 2.5 times faster than SATA 6Gb/s. It's the perfect choice for installing an operating system or application drive to provide fast data access.

C
M.2 2280 B Key Accelerates AI Deployment

With the M.2 2280 B-key socket and PCI Express® 3.0 x2 signals, system integrators could choose from IEI's Mustang-M2BM-MX2, AI accelerator card featuring the Intel® Movidius™ Myriad™ X VPU (Vision Processing Unit), and enhance all vision inference applications such as facial recognition, vehicle registration plate recognition, and many other machine vision applications.

AI Accelerator

The Mustang-M2BM-MX2 card equipped with two Intel® Movidius™ Myriad™ X VPU, providing an flexible AI inference computing.

Learn More

One PCIe Gen3 x16 Slot Easily Adds on GPGPU, AI Accelerator, Frame Grabber and More

The KINO-DH420 brings high performance industrial Edge with one PCIe x16 slot. This provides a greater range of support for GPGPU, frame grabber card and AI accelerators. It is designed for the most intensive applications from Edge AI system to automated optical inspection (AOI).

Quality Assurance

With years of experience,
IEI is continuously improving the design and production quality and aiming to achieve customer satisfaction.

  • X-Ray CT Inspection
  • Side Fill Technology
  • -20ºC~60ºC Aging Test
  • CE/FCC Compliance

X-Ray CT Inspection

Side Fill Technology

-20ºC~60ºC Aging Test

CE/FCC Compliance


Hardware Spec.

Form Factor
Form Factor Mini-ITX Motherboard
System
CPU LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset Intel® H420E
Memory Two 260-pin 2933 MHz Dual-Channel DDR4 SO-DIMMs supported up to 64GB
Memory Max. up to 64GB
Cooling method / System Fan 1 x CPU fan connector (1x4 pin)
2 x System fan connector (1x4 pin)
Physical Characteristics
Dimensions (LxWxH) (mm) 170mm x 170mm
Net Weight 400g
Storage
Storage 2 x SATA : 6Gb/s (no RAID)
1 x M.2(NGFF) : B key (support NVME storage)
I/O Interface
Display Output 1 x HDMI up to 4096 x 2160 @30Hz
1 x Display Port up to 4096 x 2304 @60Hz
Ethernet 3 x LAN -
LAN1: Intel® i225LM GbE controller (colay i225v)
LAN2: Intel® i225v GbE controller (colay i225LM)
LAN3: Intel® i225v GbE controller (colay i225LM)
Audio 1 x Line out
1 x Mic
1 x Front Audio : 2x5 pin
1 x HD Audio : Realtek ALC888S HD codec
I/O Interface 2 x External RS-232
1 x Internal RS-232 : 2x5 pin, P=2.00
1 x Internal RS-422/485 : RS-485 support AFC
2 x External USB 2.0 : Type-A
4 x External USB 3.2 Gen1x1 : 5Gb/s(Type-A)
2 x Internal USB 2.0 : 2x4 pin, P=2.00
1 x DIO : 8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x16
2 x M.2(NGFF) -
1 x M.2 A key (2230) (PCIe Gen 3 x1/USB 2.0)
1 x M.2 B key (3042/3052/2242/2280) w/ SIM holder (PCIe Gen 3 x2/USB 2.0)
Other Features
TPM Intel® PTT(TPM 2.0)
Power
Power Consumption 12V@12.408A (Intel® Core™ i7-10900E CPU with two 32 GB 2933 MHz DDR4 memory, EuP/ErP mode disabled)
Power Supply DC 12V input
1 x ATX power connector (2x4 pin)
1 x DIN 4-pin DC Jack
Support AT/ATX mode
ErP/EuP Compliant
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

KINO-DH420-R10 Mini-ITX SBC supports LGA1200 Intel® 10th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, dual independent displays, triple 2.5GbE LAN, M.2, SATA 6Gb/s, HD Audio and RoHS

Package Contents

Package Content
  • 1 x KINO-DH420 single board computer

  • 1 x SATA cable

  • 1 x I/O shielding

  • 1 x QIG
