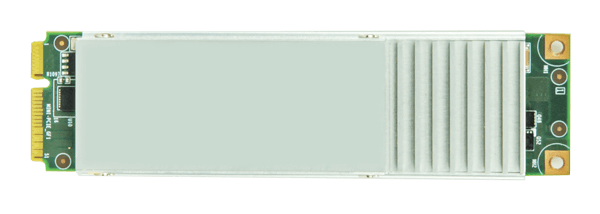

GPOE-PD-BT01

IEEE802.3 bt POE PD module , for AFL3-xxC-ULT5 series

IEEE802.3bt POE PD Module
71Watt Output Power
12V DC output
Input voltage range 36V to 57V
Tool-less and Easy install

Hardware Spec.

Input
Voltage 36V to 57V DC
Output
Voltage 12V DC
Dimensions
Dimensions 114.96mm X 30mm
Interface
Interface PCIe mini (IEI pin definition)
Key Features
Key Features IEEE802.3bt POE PD Module
71Watt Output Power
12V DC output
Input voltage range 36V to 57V
Tool-less and Easy install

Ordering Information

GPOE-PD-BT01-R10 PoE PD IEEE802.3 af/at/bt with mini-PCIE from factor , support AFL3-W15C/W19C/W22C-ULT5 , R10
