End of Life Notice
* Effective Date: 2017/09/04
» Intel® Atom™ N2600/D2550 processors supported
» Intel® GMA integrates high-performance graphics and media processing
» Support DDR3 & DDR3L (1.35V) 1066/800 MHz, up to 4 GB
» 18/24-bit single-channel LVDS, analog CRT
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
» Intel® GMA integrates high-performance graphics and media processing
» Support DDR3 & DDR3L (1.35V) 1066/800 MHz, up to 4 GB
» 18/24-bit single-channel LVDS, analog CRT
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Hardware Spec.
| Display | Display Output |
|---|---|
| System | CPU |
| Chipset | Intel® NM10 |
| Memory Max. |
Intel® Atom™ D2550 dual-core processor 1.86 GHz/512 x 2 L2 cache (system max. 4 GB) Supports 1.35V DDR3L |
| Storage | |
| I/O Interface | Ethernet |
| Digital I/O | |
| Expansion | 3 x PCIe x1 signal to baseboard |
| Infrared Interface | |
| I/O Interface | |
| Power | Power consumption |
| Environment | Operating Temperature |
| Humidity | 5% ~ 95%, non-condensing |
Ordering Information

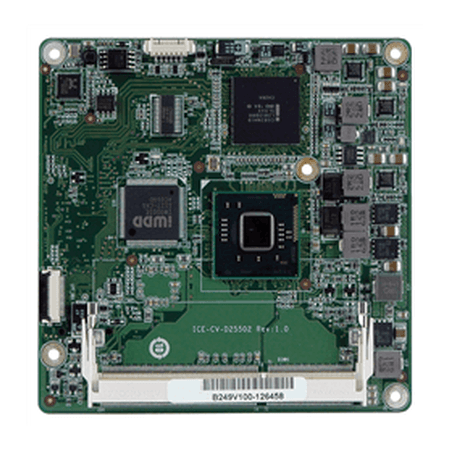

| ICE-CV-D25502-R10 | COM Express Rev 2.0 Compact Type 2 Module,IntelAtom D2550 Processor, DDR3, VGA/LVDS, GbE, SATAII, USB, PCI and Audio, RoHS |
|---|---|
| ICE-CV-N26002-R10 | COM Express Rev 2.0 Compact Type 2 Module,IntelAtom N2600 Processor, DDR3, VGA/LVDS, GbE, SATAII, USB, PCI and Audio, RoHS |
| ICE-CV-N28002-R10 | COM Express Rev 2.0 Compact Type 2 Module,IntelAtom N2800 Processor,DDR3, VGA/LVDS, GbE,SATAII, USB, PCI and Audio,RoHS |
