Mustang-M2AE

Computing Accelerator Card with 1 x Intel® Movidius™ Myriad™ X MA2485 VPU,M.2 AE key interface, 2230, RoHS

End of Life

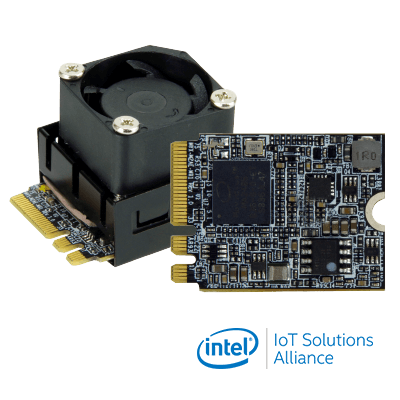

Mustang-M2AE-MX1 VPU Accelerator Card
Mustang-M2AE-MX1 VPU Accelerator Card
Mustang-M2AE-MX1 VPU Accelerator Card
Mustang-M2AE-MX1 VPU Accelerator Card
  • Mustang-M2AE-MX1 VPU Accelerator Card
  • Mustang-M2AE-MX1 VPU Accelerator Card
  • Mustang-M2AE-MX1 VPU Accelerator Card
  • Mustang-M2AE-MX1 VPU Accelerator Card

End of Life Notice

* Effective Date: 2022/05/13

» M.2 AE key form factor (22 x 30 mm)
» 1 x Intel® Movidius™ Myriad™ X VPU MA2485
» Power efficiency, approximate 4.5W
» Operating Temperature -20°C to 60°C
» Powered by Intel’s OpenVINO™ toolkit

Hardware Spec.

System
Chipset 1 x Intel® Movidius™ Myriad™ X MA2485 VPU
Cooling method / System Fan Active fan
Physical Characteristics
Dimensions (LxWxH) (mm) 113 X 56 X 23
Power
Power Consumption Approximate 15W
Environment
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 90%
Card Slot Interface
PCIe Gen 2 x 2

Ordering Information

Mustang-M2AE-MX1-R10 Deep learning inference accelerating M.2 AE key card with 1 x Intel® Movidius™ Myriad™ X MA2485 VPU, M.2 interface 22mmx30mm, RoHS
