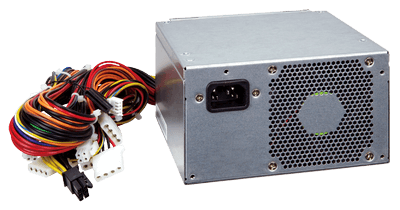

ACE-A140B

400 W PS/2 ATX Power Supply with ErP

End of Life

ACE-A140B
ACE-A140B-S
  • ACE-A140B
  • ACE-A140B-S

End of Life Notice

* Effective Date: 2023/04/03

400 W PS/2 ATX Power Supply with ErP

Hardware Spec.

Input
Voltage 90~264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 5A (RMS)@115VAC, 2.5A (RMS)@230VAC
Inrush Current 80A max. for 115VAC, 160A max. for 230VAC
Output
Voltage +3.3V/21A,+5V/16A,+12V1/17A,+12V2/17A,-12V/0.5A,+5Vsb/3A,-5V/0.1A
Over Voltage Protection +3.3V: 3.76V-4.3V
+5V: 5.74V-7.0V
+12V1 and +12V2: 13.4V-15.6V
Short Circuit Protection +3.3V, +5V, +12V or -12V shutdown and latch off
General
Watt 400
Efficiency 87%
MTBF 100000
Operating temperature 0°C ~ 50°C
Storage temperature -20°C ~ 80°C
Dimensions 140 x 150 x 86
Output Connector 1 x 20+4-PIN ATX,
2 x 4-pin 12V CPU,
8 x HDD/CDROM,
1 x Graphics card power,
2 x FDD,
2 x SATA

Ordering Information

ACE-A140B-S-R11 400W PS/2 ATX Power Supply with ERP & on/off switch,meets 80 plus(Gold);RoHS
ACE-A140B-R11 400W PS/2 ATX Power Supply with ERP,meets 80 plus(Gold),RoHS
