PUZZLE-IN002

1U Rackmount Network Appliance with 8th & 9th Generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® Processor, 1 PCIe slots

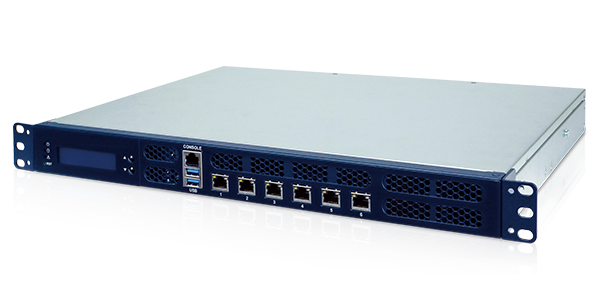

PUZZLE-IN002 Network Appliance with Intel CPU
PUZZLE-IN002 Network Appliance with Intel CPU
PUZZLE-IN002 Network Appliance with Intel CPU
  • PUZZLE-IN002 Network Appliance with Intel CPU
  • PUZZLE-IN002 Network Appliance with Intel CPU
  • PUZZLE-IN002 Network Appliance with Intel CPU
» 8th & 9th Generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor
» 6 x GbE RJ-45 via Intel® I211
» 2 x DDR4 2400 MHz Non-ECC UDIMM, up to 32GB
» 1 x RJ-45 Console, 2 x USB 3.2 Gen 1 (5Gb/s), LCM
» 2 x 2.5”SATA drive bay, 1 x M.2 A key (PCIe & USB 2.0), 1 x PCIe Mini card (SATA, USB 2.0) with SIM slot
» Support PCIe x16
» Support open source software, such as pfSense® and OPNsense®.

Hardware Spec.

Form Factor
Form Factor 1U
System
CPU Intel® PentiumGold G5400T Processor,
Intel® Gen8 Core™ i3-8100T processor
Chipset Intel® H310
Memory 2 x DDR4 2400MHz Non-ECC UDIMM
Memory Max. up to 32 GB
Cooling method / System Fan 4x Cooling Fans with Smart Fan
Physical Characteristics
Rack Height 1U
Dimensions (LxWxH) (mm) 320x430x44.2
Net Weight 5 kg
Storage
Storage 2 x 2.5” SSD/HDD Bay : support SATA 3.0 (6 Gbps)
I/O Interface
Ethernet 6 x LAN
I/O Interface 2 x External USB 3.2 Gen1x1
2 x Internal USB 2.0 : Pin header
1 x Console port(s) : RJ45
Expansion 1 x PCIe x16
1 x PCIe mini Card Slot
1 x M.2(NGFF) A key (PCIe & USB 2.0)
Other Features
TPM 1 x TPM 2.0 Pin header
Power
Input 100 V ~ 240 V
Power Supply 250W
Environment
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 75°C (-4°F ~ 167°F)
Humidity 5% ~ 90% non-condensing
Certifications
Safety & EMC CE / FCC / RoHS
OS Support
OS Support Linux Ubuntu 18.04.04
CentOS 7/ Red Hat/Fedora EPEL
Microsoft Windows 10

Ordering Information

PUZZLE-IN002-i3T/8G-R10 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, 8GB DDR4, one 256GB SSD, six 1GbE , one PCIe x16 expansion, RoHS
PUZZLE-IN002-i3T-R10 1U Rackmount Network Appliance with Intel® Gen8 Core™ i3-8100T processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS
PUZZLE-IN002-R10
* A CPU heatsink must be purchased separately
1U Rackmount Network Appliance support Intel® Gen 8 Core™ i7, i5, i3, Pentium® or Celeron® processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS
PUZZLE-IN002-PGT/8G-R10 1U Rackmount Network Appliance with Intel® Gen8 Pentium® Gold G5400T processor, 8GB DDR4, one 256GB SSD, and six 1GbE , one PCIe x16 expansion, RoHS
PUZZLE-IN002-PGT-R10 1U Rackmount Network Appliance with Intel® Gen8 Pentium® Gold G5400T processor, two DDR4 slots, and six 1GbE , one PCIe x16 expansion, RoHS

Package Contents

Package Content
  • .1 x Power cord

  • .2 x Rack mounting ears

  • .6 x Screws for rack mounting ears

  • .USB to console cable (Option)

  • .RS-232 to console cable (Option)

  • .CPU Heatsink (TDP:80W) (Option)

  • .CPU Heatsink (TDP:35W) (Option)

  • .HDMI™ cable (Option)
