End of Life Notice
* Effective Date: 2021/12/17
• 100W (8.3A @ 12V) output
• 56Wh, for more than 140 minutes operation time (depending on panel PC power requirements)

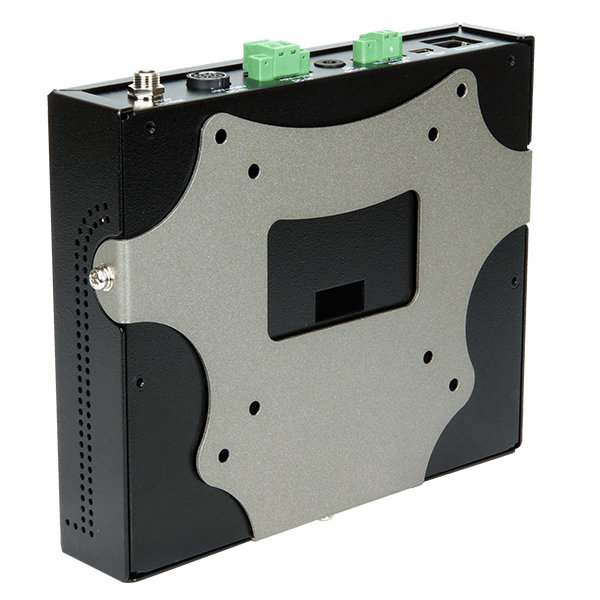

• Rugged metal enclosure for standard VESA 75/100 mounting
• Web-based, remote network management, no software installation required
• Local PC-based monitoring software for input detection and battery status monitoring
• Auto shut down when battery low
• Remote DC output on/off switch for external switch installation
• Provides stable power to the PC during line sags and spikes and absorbs power surges and transients, protecting expensive equipment
Hardware Spec.
| Capability (Watt) | |
|---|---|
| Capability (Watt) | 7.26V 5200 mAH / 37.7W |
| Color | |
| Color | Black |
| General | |
| Dimensions | 152mm x 96mm x 28mm |
| Operating temperature | 0°C~40°C |
| Storage temperature | -20°C~50°C |
| Watt | 100W |
| Material | |
| Material | SECC |
| Weight | |
| Weight | 244g |
| Input | |
| Voltage | DC 9~36 V |
| Input Current |
1. Adapter is 12V-9A (Load is 100W) 2. Battery is 12V-9A (Load is 100W) |
| Output | |
| Voltage | DC +12V +/-5% |
| Over Voltage Protection |
1. Battery low is 10% of battery capacity 2. Shuntdown 5% of battery capacity (Default) 3. The end of battery discharge voltage is 6V |
Ordering Information
| AUPS-B20-R20 | VESA 100, DC 9~36V input 100W UPS module with 14.52V;5200mAH, 4S2P Li-Ion battery,R20 |
|---|
Package Contents
| Package Content |
|
|---|
