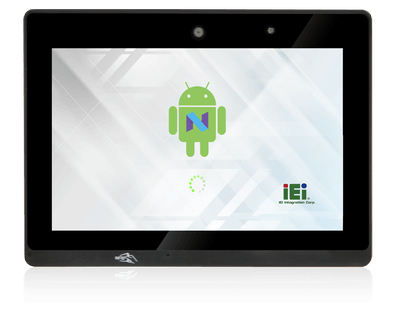

AFOKAR-08A

Vehicle Computer Series

End of Life

End of Life Notice

* Effective Date: 2022/07/11

» 8” sunlight readable TFT LCD with projected capacitive touchscreen
» Optional LTE module
» Built-in GPS receiver
» Built-in OBD-II/J1939
» OS: Android 7.1

Hardware Spec.

Form factor
SBC Form Factor CPU: Rockchip RK3399
(Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
Chipset: SoC
System Memory:On-board 2GB LPDDR3-1866
I/O Interface
I/O Ports 20-pin Connector
** 1 x OBD-II/J1939
** 1 x USB 2.0
24-pin Connector
** 1 x Audio out
** 1 x RS-232
** 1 x RS-485
** 4-bit digital I/O with isolation (2-bit input, 2-bit output)
1 x HDMI™ output
1 x GPS SMA connector
1 x WWAN SMA connector
1 x SIM card slot
1 x USB3.0 Type A
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini (reserved for WWAN)
System
Cooling method / System Fan Fanless
Drive Bays On board 16GB eMMC NAND FLASH
1 x Micro SD Slot
Indicator&Buttons
Buttons 1 x Power button
Indicators 1 x Power
1 x BT
1 x Wi-Fi
1 x WWAN
Color
Color Black C + Silver
Dimensions
Dimensions 210 x 154 x 33.9
Weight
Weight 0.77 kg
Environment
Operating Temperature -10°C ~ 50°C with air flow
Humidity 10% ~ 95%, non-condensing

Ordering Information

AFOKAR-08A-RK39-R10-US 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, US reg, ROHS
AFOKAR-08A-RK39-R10-TW 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, TW reg, ROHS
AFOKAR-08A-RK39-R10-EU 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, EU reg, ROHS
AFOKAR-08A-RK39-R10-CN 8" 500 cd/m2, Android 7.1 In Vehicle Panel PC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, GPS, WIFI/BT, OBD II, 5M Camera, RFID Reader, CN reg, ROHS

Package Contents

Package Content
  • 1 x AFOKAR Device
