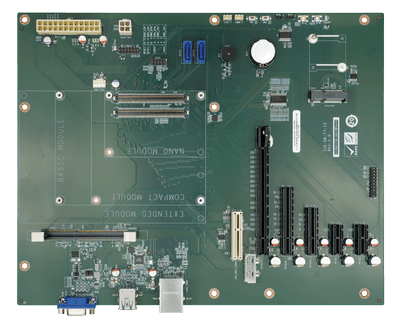

ICE-DB-T7-i2

Base Board for COM Express Type 7 Module COM.0 Rev. 2.1

End of Life

End of Life Notice

* Effective Date: 2023/08/07

» ATX form factor baseboard for COM.0 Rev. 3.0, pinout Type 7
» Support 1 x PCIe x8 for 10GbE PHY card
» Support 32 PCIe lanes
» Support PICMG EAPI R1.0
» Support IPMI 2.0 via iRIS-2400 module

Hardware Spec.

Physical Characteristics
Dimensions (LxWxH) (mm) 304.8 X 243.8
Storage
Storage 2 x SATA
I/O Interface
Display Output 1 x VGA :depends on CPU sku
Ethernet 1 x LAN
I/O Interface 4 x Internal RS-232 :2 x from COM Express (only TX, RX, GND)
2 x from SIO
4 x External USB 3.2 Gen1x1
Expansion 1 x PCIe x16 :Gen 3 signal
1 x PCIe x8 :x8 Gen 3 signal
2 x PCIe x4 :1 x(x4 Gen 2 signal)
1 x (x1 Gen 2) (x4 signal option)
1 x PCIe x1 :x1 Gen 2
1 x PCIe mini Card Slot
Other Features
TPM 2x 10 pin pin header support LPC interface
iRIS 1 X iRIS-200 slot
Power
Power Supply Support AT/ATX mode
24+4 pin
Battery -40°C ~ 85°C
Environment
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

ICE-DB-T7-i2-R10 Baseboard for COM Express Type 7 Module COM.0 Rev. 2.1

Package Contents

Package Content
  • 1 x COM Express Baseboard

  • 1 x Mini jumper pack

  • 1 x SATA cable (P/N: 32000-062800-RS)

  • 1 x QIG
