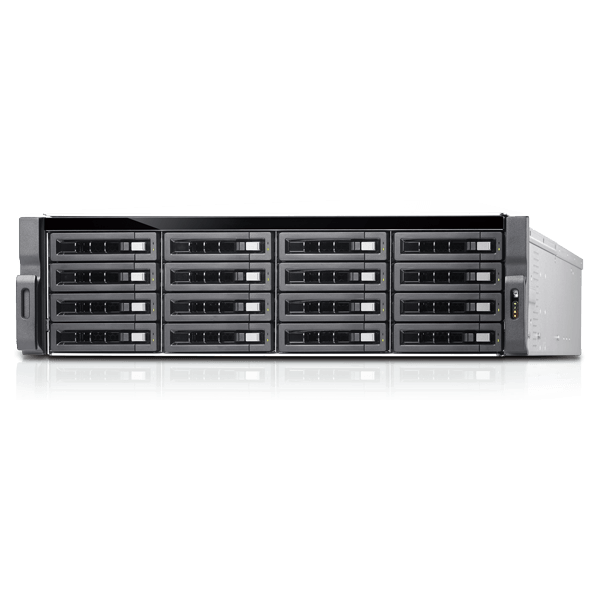

GRAND-C610

A Double Server powered by dual Intel® Xeon® E5 CPU for computing and storage

End of Life

End of Life Notice

* Effective Date: 2020/06/16

» Double Server, with Intel® Xeon® E5-2600 v3
» 16 x DIMM Slots, Install up to 1TB memory with 16 x 64GB DIMMs
» 4 x PCIe slot can support 40GbE network card
» Storage expandable, up to 1PB
» IPMI Remote Management

Hardware Spec.

Form Factor
Form Factor 3U, Rackmount
System
CPU FCLGA2011-3 sockets-support Xeon® E5-2600 v3 family
Chipset Intel® C610
Memory RDIMM / LRDIMM
Total slots: 16
Memory Max. 1 TB (64 GB x 16)
Cooling method / System Fan Smart Fan 4 (6cm 12V DC)
Physical Characteristics
Rack Height 3U
Dimensions (LxWxH) (mm) 130.8 (H) x 444 (W) x 744 (D) mm
Net Weight 22.42 kg / 49.43 lb
Storage
Storage 4 x 2.5” SSD/HDD Bay(SAS (12Gbps) SSD or SAS/SATA (6Gbps/3Gbps) SSD)
16 x 3.5” HDD Bay(3.5” SAS (12Gbps/6Gbps) / SATA (6Gbps/3Gbps) HDDs or 2.5” SAS/SATA SSD)
Description:(Max. Raw Capacity: 128TB
Interface: SAS 12Gb/s backward-compatible to SAS/SATA 6Gb/s)
2 x M.2(NGFF)
I/O Interface
Display Output 1 x VGA
Ethernet 2 x LAN(GbE)
I/O Interface 4 x External USB 3.0
Expansion 2 x M.2(NGFF)
1 x PCIe x 16
3 x PCIe x 8
Other Features
IPMI IPMI LAN port, IPMI VGA, IPMI console
Power
Power Consumption Sleep mode: 254.21 W
In Operation: 362.86 W
Power Supply 650W (Redundant)

Ordering Information

GRAND-C610-20C-R10 3U 16Bay front 3.5", 4bay rear 2.5" HDD or SSD support, rackmount storage server (Barebone), with 650W redundant PSU, RoHS

Package Contents

Package Content
  • Ethernet cable x 2

  • Power cord x 2

  • Flat head screw (for 3.5” HDD)

  • Flat head screw (For 2.5” HDD)
