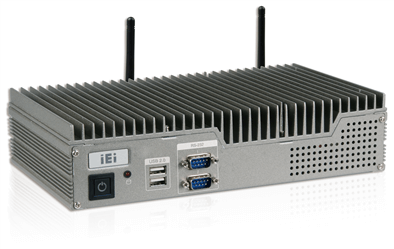

ECN-380-QM87i-WD-QGW

Fanless Embedded System with Intel® Solution

End of Life

End of Life Notice

* Effective Date: 2019/12/30

» Intel® Core™ i5/Celeron® CPU » Intel® Core™ i5-4400E 2.7 GHz/Celeron® 2000E 2.2 GHz
» Triple video outputs » 2 x HDMI™ + VGA
» Two 2.5” SATA 6Gb/s HDD/SSD drive bays

Hardware Spec.

Form factor
SBC Form Factor Intel® mobile Core™ i5-4400E with AMT 9.0 support (up to 2.7GHz, dual-core, 3MB cache, TDP=37W)
Intel® mobile Celeron® 2000E (up to 2.2GHz, dual-core, 2MB cache, TDP=37W)
System
Cooling method / System Fan Fanless
Chipset Intel® QM87
Memory Max. One 204-pin 4GB DDR3 SO-DIMM pre-installed (system max: 8GB)
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD drive bay
I/O Interface
Display 2 x HDMI™, 1 x VGA
Audio 1 x Line-out, 1 x Mic-in
I/O Interface 2 x USB 3.0
4 x USB 2.0
2 x RJ-45
2 x RS-232
Serial 2 x RS-232
Power
Input DC jack: 12 V DC
3-pin terminal: 9 V~36 V DC
Power consumption 12 V@4.6 A
(Intel® mobile Core™ i5-4400E with 4GB 1333MHz DDR3 memory)
Environment
Operating Temperature -20°C ~60°C with air flow (SSD)
Humidity 10% ~ 95%, non-condensing
Dimensions
Dimensions 265 x 134 x 56.7
Weight
Weight 2.4 kg/4.2 kg
Color
Color Silver
Expansion Slots
Expansion Slots 1 x Full-size PCIe Mini (supports mSATA, SATA 6Gb/s signal only)
1 x Half-size PCIe Mini (only for iRIS-1010)
Option
iRIS 1 x iRIS-1010 (optional)

Ordering Information

ECN-380-QM87i-WD-QGW-R10 Fanless embedded system with Intel® Core™ i5-4400E 2.7 GHz, TDP 37W, 2 x HDMI™, 1 x VGA, 2 x 2.5'' SATA HDD bay, 8GB memory pre-installed, iRIS-1010, with QTS-gateway, 9 V~36V DC, RoHS
