Maritime Embedded System

End of Life

End of Life Notice

* Effective Date: 2021/06/16

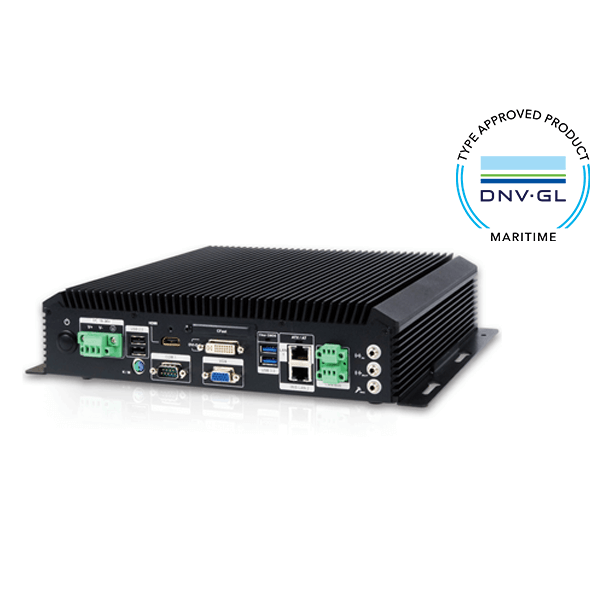

» Fanless marine computer with 4th Generation Intel® Core™ i5 dual-core processor
» -15°C ~ +55°C wide temperature
» Isolation protection
4 x RS-232/422/485 isolated serial ports
Isolated 18 V~36 V DC input
2 x Isolated CAN-bus 2.0B
» 2 x 2.5”” SSD bay with RAID 0/1 function
» Supports IEI iRIS-2400 (IPMI 2.0 compliant)

Hardware Spec.

Form factor
SBC Form Factor Intel® mobile Core™ i5-4400E (2.7 GHz, 37W)
Cooling method / System Fan Fanless
Chipset Chipset: Intel® QM87
Memory Max. 2 x 204-pin DDR3 SO-DIMM slot
(system max. 16 GB)
Pre-installed 4 GB DDR3 SO-DIMM
Drive Bays 2 x 2.5” SATA 6Gb/s SSD bay with
RAID 0/1 function
I/O Interface
Display 1 x VGA
1 x DVI-D
1 x HDMI™
Audio 1 x Line-out, 1 x Line-in, 1 x Mic-in
I/O Interface 1 x PS2 (KB/MS)
2 x USB3.0
2 x USB2.0
2 x RJ-45 with teaming support
1 x PCIe GbE by Intel® I217LM
1 x PCIe GbE by Intel® I210-AT
(2 with 2 kV isolation)
1 x DB-9 (non-isolated)
4 x RS-232/422/485 (with 2.5 kV isolation)
2 x CAN-bus (with 2.5 kV isolation)
2 x Antenna SMA hole (reserved)
Serial 1 x DB-9 (non-isolated)
4 x RS-232/422/485 (with 2.5 kV isolation)
Input Terminal block: Isolated 24V DC (18~31.2 V DC)
Power consumption 100 W (Intel® mobile Core™ i5-4400E with 4 GB
DDR3 memory)
Operating Temperature -15°C ~ 55°C (5°F ~131°F) with air flow (SSD)
Safety & EMC EMC/CE/FCC/DNV, IEC 60945 4th,
IACS-E10, IEC 61174 compliant
IP rating: IP22 compliant rear cover
Humidity 5% ~ 95%, non-condensing
Dimensions 290 x 75 x 225
Weight 4.08 kg / 6.03 kg
Color Black
Expansion Slots
Expansion Slots 2 x Full size

Ordering Information

SBOX-100-QM87i-QGW-R10 Fanless marine computer with Intel® Mobile Core™ i5-4400E 2.7GHz Processor ,DDR3 8GB, iRIS-2400 supported, with QTS-Gateway, isolated 18~36V DC, RoHs

Package Contents

Package Content
  • 1 x User manual

  • 1 x PS/2 cable

  • 1 x Rubber pad & screw pack
