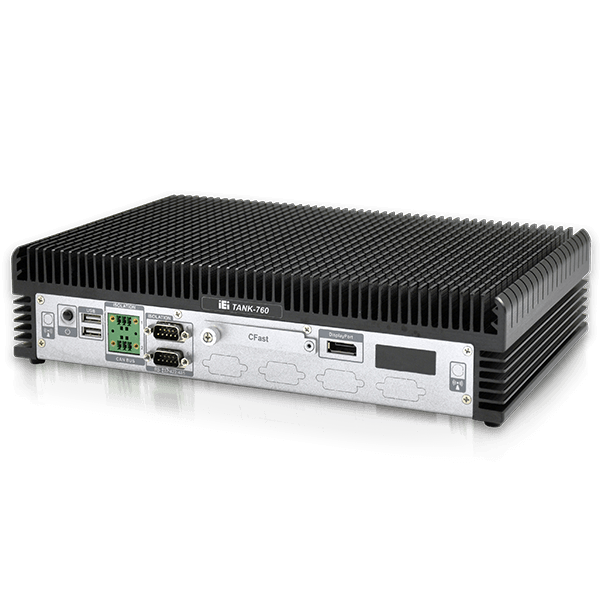

TANK-760-QGW

Cloud Based IPC built-in QTS Gateway OS for IIOT

End of Life

TANK-760-embedded-system
TANK-760-embedded-system
TANK-760-embedded-system
TANK-760-embedded-system
TANK-760-embedded-system
  • TANK-760-embedded-system
  • TANK-760-embedded-system
  • TANK-760-embedded-system
  • TANK-760-embedded-system
  • TANK-760-embedded-system

End of Life Notice

* Effective Date: 2019/03/18

» Built-in QTS Gateway operating system that can be visualized immediately
» Supports remote connection (myQNAPcloud) and hybrid backup (Hybrid Backup Sync)
» QRM+ easily monitors IPMI equipment, servers, PCs and production line equipment
» Q’center centralizes management of multiple QNAP NAS and the IPC equipped with QTS Gateway
» Surveillance Station for remote video surveillance, 24/7 security
» Seven levels of data security protection to protect your valued data

Hardware Spec.

Form factor
SBC Form Factor CPU: Intel® Core™ i5-4400E 2.7 GHz
System
Cooling method / System Fan Fanless
Chipset Intel® HM86
Memory Max. 2 x 204-pin DDR3 SO-DIMM preinstalled two 4 GB
(Maximum memory size supported by the system is 16 GB)
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD bay
Storage HDD: 2 x 2.5” SATA 6Gb/s HDD/SSD Bay
1 x Cfast
I/O Interface
Display 1 x VGA, 1 x HDMI™, 1 x DisplayPort
Audio 1 x Line-out, 1 x Mic-in
I/O Interface 4 x USB 3.0
2 x USB 2.0
2 x RJ-45
1 x PCIe GbE by Intel® I210
1 x PCIe GbE by Intel® I217LM
CAN-bus:2 x Phoenix terminal block with isolation
1 x 802.11b/g/n (optional)
Digital I/O Digital I/O:8-bit digital I/O, 4-bit input/4-bit output
I/O Openings Reserved IO window for PCIe Mini card expasion
Serial 4 x RS-232 (DB-9, with isolation)
2 x RS-232/422/485 (DB-9, with isolation)
Power
Input DC Jack : 9V~36V DC
Terminal Block : 9V~36V DC
Power consumption 19V@3.2A
Environment
Operating Temperature -20°C ~ 70°C with air flow (SSD) i5-4400E
Safety & EMC CE/FCC
Physical Characteristics
Construction Extruded aluminum alloys
Dimensions
Dimensions 310 x 200 x 62
Weight
Weight 4.2 kg/6.9 kg
Color
Color Black C + Silver
Expansion Slots
Expansion Slots PCIe Mini 2 x Full Size (one co-lay mSATA)
Option
iRIS 1 x iRIS-2400 (Optional)

Ordering Information

TANK-760-QGW-i5/8G-R10 Fanless embedded system, Intel® Core™ i5 dual-core i5-4400E 2.7 GHz, TDP 37W, 2 x 4GB DDR3 pre-installed memory, VGA/HDMI™/DisplayPort, iRIS-2400 optional, with QTS-Gateway, 9 V~36 V DC, RoHs

Package Contents

Package Content
  • 1 x Power Adapter

  • 1 x Chassis Screw

  • 1 x Power Cord

  • 1 x Mounting Bracket
