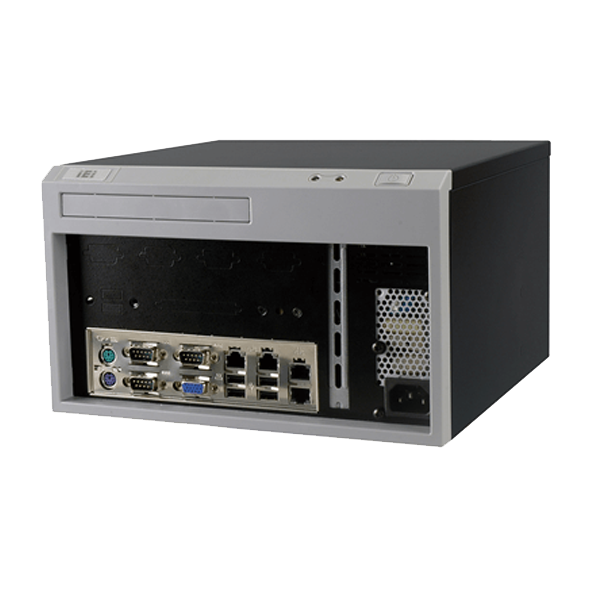

EBC-3100

Mini-ITX Chassis for High Power Consumption Applications

» Designed for high performance applications, bundled with 270W high efficiency ATX power supply
» Front accessible I/O design
» Supports one expansion slot
» One 3.5” hard drive, one slim type optical drive capacity

Hardware Spec.

Form factor
SBC Form Factor Refer to KINO Series
SBC Size: Mini-ITX (170mm x 170mm)
Expansion Slots
Expansion Slots 1 x Full-height expansion slot
System
Cooling method / System Fan 80 x 80 x 25
Drive Bays 1 x 3.5” SATA HDD space
1 x 5.25” slim type
Physical Characteristics
Construction Heavy duty metal with plastic front panel
Desktop, wall mount
Color
Color Black
Dimensions
Dimensions 260 x 250 x 156
Weight
Weight 2.5 kg/3.9 kg
Environment
Operating Temperature 0°C ~ 50°C

Ordering Information

EBC-3100-R20/300W Mini-ITX embedded chassis,one 3.5" hard drive bay,with 300W ATX PSU,Black,Powder paint,RoHS
EBC-3100-R20/180W Mini-ITX embedded chassis,one 3.5" hard drive bay,with 180W ATX PSU,Black,Powder paint,RoHS
EBC-3100-R20 Mini-ITX embedded chassis,one 3.5" hard drive bay and one slim ODD,W/O PSU,Black,Powder paint,RoHS

Package Contents

Package Content
  • 1 x System Fan

  • 1 x Screw set

  • 1 x QIG

  • 1 x Power cord

  • 1 x Wall mount kit

  • 1 x SATA slim ODD cable
