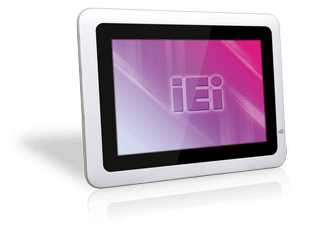

10.1” RISC Base Panel PC

End of Life

End of Life Notice

* Effective Date: 2018/04/30

» 10.1” 1280x800 LCD
» Project Capacitive Touch Screen
» CPU: Freescale i.MX6 Cortex-A9 Quad-Core 1GHz
» OS: Android 4.2.2
» Boot Flash: 4GB eMMC Nand Flash
» RAM: 1GB DDR3 SDRAM on board

Hardware Spec.

Wireless BT4.0 + Wi-Fi Controller for 802.11b/g/n
Dimensions 293 x 209.5 x 44.49 (LxWxH) (mm)
Humidity 5%~90% non-condensing
IP Level IP54 front panel only
Operating Temperature 0˚C ~ 40˚C
Storage Temperature -10˚C ~ 60˚C
I/O Interface
I/O Ports and Switches 1 x 10/100/1000 Mbps
2 x USB 2.0
1 x RS-232/422/485 support software controllable(DB9)
1 x RS-232 Full-Function (DB9)
1 x 13.56MHz
1 x DC jack
1 x On/Off power switch
1 x Reset button
1 x SD slot (Hidden)
Backlight MTBF 30000 hrs
Brightness (cd/m2) 400
Contrast Ratio 800:1
LCD Color 16.2M
Pixel Pitch (mm) 0.1695 x 0.1695
Resolution 1280(W) x 800(H)
Size 10.1” (16:9)
Viewing Angle (H-V) 85/85/85/85 Deg.
Other Features
Audio 1 x 2W Speaker
System Cooling Fanless
Physical Characteristics
Color White
Cutout Dimensions Plastic front cover and metal rear cover
Dimensions (LxWxH) (mm) 293 x 209.5 x 44.49
Mounting Panel, Wall, Stand, VESA Mount 100mm x 100mm
Power Requirement 9~30V DC
Cooling method / System Fan Fanless
CPU Freescale i.MX6 Cortex A9 Quad-Core 1.0GHz
On-board Memory 1GB DDR3 SDRAM
SBC Model OS Support: Android 4.2.2
Storage Boot Flash: 4GB eMMC Nand Flash
Touch Screen Project Capacitive

Ordering Information

IOVU-10F-AD-WB-ET-R10 10.1" TFT-LCD; Freescale i.MX6 Cortex-A9 QC 1GHz; WiFi/BT; 13.56MHz RFID; Android 4.2
