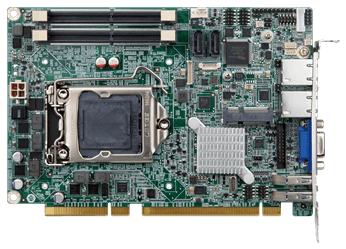

Half-size PICMG 1.3 CPU Card supports LGA1151 Intel® Xeon® E3, Core™ i3/ Pentium®/Celeron® CPU per Intel® C236

End of Life

End of Life Notice

* Effective Date: 2023/10/23

» PICMG 1.3 half-size CPU Card
» LGA 1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor supported
» Two 260-pin 1600/2133MHz Dual-Channel DDR4 ECC & non-ECC SODIMM supported up to 32GB
» Supports dual independent display by VGA & internal DP pin header
» PCIe mini Supports mSATA & USB 2.0
» Intel® PCIe GbE with Intel® AMT 10.0 supported
» Supports RAID 0, 1 function via SATA 6Gb/s
» IEI jumper-less function

Hardware Spec.

CPU LGA 1151 socket supports Intel® Xeon® E3 v5/v6, 6th/7th generation Core™ i3, Pentium® or Celeron® processor
Memory Two 260-pin 1866/2133 MHz dual-channel DDR4 ECC and non-ECC unbuffered SODIMMs
Memory Max. 32GB
Physical Characteristics
Dimensions (LxWxH) (mm) 169 X 126
Net Weight 420g
Storage 2 x SATA :6Gb/s(RAID 0/1 support)
1 x mSATA :SATA & USB signal
I/O Interface
Display Output 1 x VGA :up to 1920x1200@60Hz
1 x iDP :interface for HDMI™, LVDS, VGA, DVI, DP (up to 3840x2160@60Hz)
Ethernet 2 x LAN :LAN1: Intel® I219LM Clarkville-V with Intel® AMT 11.0 support
LAN2: Intel® I210 PCIe controller
I/O Interface 2 x Internal RS-232/422/485 :2x5 pin, p=2.0
2 x External USB 3.2 Gen1x1
4 x Internal USB 2.0 :2x4 pin, p=2.0
1 x PS/2 :1x6 pin
1 x DIO :8-bit digital I/O (2x5 pin)
Expansion 1 x PCIe x16 :signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8)
1 x PCIe x4 :signal from Q170 via golden finger
1 x PCIe mini Card Slot :Full-size slot (support mSATA)
Power Consumption 5V@0.13A, 12V@7.89A, 3.3V@0.10A, 5VSB@0.20A
(Intel® Xeon® E3-1275 v5 3.60 GHz with two 16 GB 2133 MHz DDR4 memory)
Power Supply 5V/12V, Support AT/ATX mode
Operating Temperature -20°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Safety & EMC CE/FCC compliant

Ordering Information

HPCIE-C236-R10 Half-size PICMG 1.3 CPU card supports LGA 1151 Intel® Xeon® E3, Core™ i3/Pentium®/Celeron® CPU with Intel® C236, ECC & non-ECC DDR4 SO-DIMM, VGA, iDP, Intel GbE, USB 3.0, mSATA, SATA, PCIe Mini, Intel® AMT and RoHS

Package Contents

Package Content
  • 1 x HPCIE-C236 Single Board Computer

  • 1 x SATA Cable

  • 1 x QIG (Quick Installation Guide)
