End of Life Notice
* Effective Date: 2018/09/03

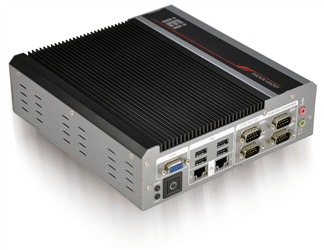

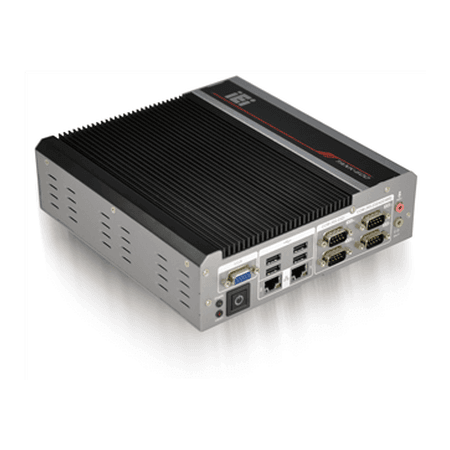

» Intel® Atom™ D2550 1.86 GHz dual-core processor / Intel® Atom™ N2600 1.6 GHz dual-core processor
» Eight COM ports: six RS-232 and two RS-232/422/485
» 6 x USB 2.0
» Dual PCIe GbE LAN for high-speed network applications
Hardware Spec.
| Color | |
|---|---|
| Color | Black C + Silver |
| Dimensions | |
| Dimensions | 193.4 x 200 x 57 |
| Environment | |
| Humidity | 5% ~ 95%, non-condensing |
| Operating Temperature | -20°C ~70°C with air flow (SSD), |
| Expansion Slots | |
| Expansion Slots |
1 x Full size (co-lay mSATA) 1 x Half size |
| Form factor | |
| SBC Form Factor |
CPU: Intel® Atom™ D2550 1.86 GHz Intel® Atom™ N2600 1.6 GHz Chipset:Intel® NM10 System Memory: On-board DDR3 4/2 GB |
| I/O Interface | |
| I/O Ports |
6 x USB 2.0 Ethernet: 2 x RJ-45 PCIe GbE by Realtek 8111E COM Port 6 x RS-232 (DB-9) 2 x RS-232/422/485 (DB-9) Display:1 x VGA 1 x Line-out, 1 x Mic-in |
| System | |
| Cooling method / System Fan | Fanless |
| Drive Bays | 1 x 2.5' SATA 3Gb/s HDD/SSD bay |
| Weight | |
| Weight | 2.2 kg/3 kg |
Ordering Information
| TANK-600-CV-N2600-8C/2G-R11 | Extend temperature Fanless embedded system with Intel® Cedarview N2600 1.6 GHz processor dual core CPU, with 2G DDR3 RAM onboard, 1xVGA, Dual GbE LAN, 6xUSB2.0 , 2xRS-232/422/485 , 6 x RS-232, RoHS |
|---|---|
| TANK-600-CV-D2550-8C/4G-R11 | Extend temperature Fanless embedded system with Intel® Cedarview D2550 1.86GHz processor dual core CPU, with 4G DDR3 RAM onboard, 1xVGA, Dual GbE LAN , 6xUSB2.0 , 2xRS-232/422/485 , 6 x RS-232, RoHS |
Package Contents
| Package Content |
|
|---|
