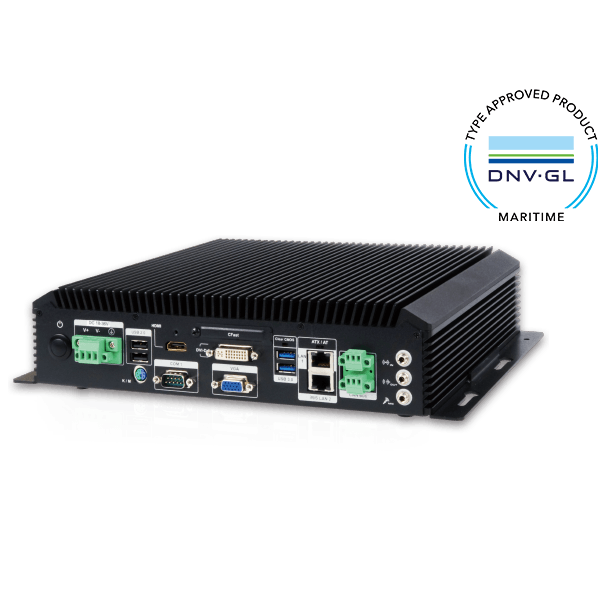

SBOX-100-QM87

Maritime Embedded System

» Fanless marine computer with 4th Generation Intel® Core™ i5 dual-core processor
» -15°C ~ +55°C wide temperature
» Isolation protection
4 x RS-232/422/485 isolated serial ports
Isolated 18 V~36 V DC input
2 x Isolated CAN-bus 2.0B
» 2 x 2.5” SSD bay with RAID 0/1 function
» Supports IEI iRIS-2400 (IPMI 2.0 compliant)

Hardware Spec.

Form factor
SBC Form Factor CPU: Intel® mobile Core™ i5-4400E (2.7 GHz, 37W)
Chipset: Intel® QM87
System Memory: 2 x 204-pin DDR3 SO-DIMM slot
(system max. 16 GB)
Pre-installed 4 GB DDR3 SO-DIMM
I/O Interface
I/O Ports 1 x PS2 (KB/MS)
2 x USB3.0
2 x USB2.0
2 x RJ-45 with teaming support
1 x PCIe GbE by Intel® I217LM
1 x PCIe GbE by Intel® I210-AT
(2 with 2 kV isolation)
1 x DB-9 (non-isolated)
4 x RS-232/422/485 (with 2.5 kV isolation)
2 x CAN-bus (with 2.5 kV isolation)
1 x VGA
1 x DVI-D
1 x HDMI™
1 x Line-out, 1 x Line-in, 1 x Mic-in
2 x Antenna SMA hole (reserved)
Expansion Slots
Expansion Slots 2 x Full size
System
Cooling method / System Fan Fanless
Drive Bays 2 x 2.5” SATA 6Gb/s SSD bay with
RAID 0/1 function
Indicator&Buttons
Indicators Power (power on: green, power off: orange),
storage (red, blinking), IPMI (blue)
Color
Color Black
Dimensions
Dimensions 290 x 75 x 225
Weight
Weight 4.08 kg / 6.03 kg
Environment
Operating Temperature -15°C ~ 55°C with air flow
Humidity 5% ~ 95%, non-condensing

Ordering Information

SBOX-100-QM87i-i5/4G-R10 Fanless marine computer with Intel® Mobile Core™ i5-4400E 2.7GHz Processor ,DDR3 4GB, iRIS-2400 supported, isolated 18~36V DC, R10

Package Contents

Package Content
  • 1 x User manual

  • 1 x PS/2 cable

  • 1 x Rubber pad & screw pack
