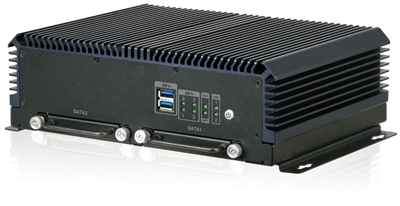

IVS-300-ULT3

In-vehicle Computer for Public Transportation Video Surveillance

End of Life

End of Life Notice

* Effective Date: 2020/09/15

» Intel® Skylake ULT /Baytrail processor
» 4 x PoE IEEE802.3af
» 2x Hot-swappable 2.5” drive bay
» Optional 3G/Wi-Fi
» 2 x RS-232, 1 x Isolated RS-422/485
» 4 x DI/DO
» 1 x HDMI™ (lockable), 1 x VGA

In-Vehicle Computer : IVS Series

The IVS series in-vehicle computer is designed with reliable performance for harsh environments. Rich I/O ports are provided to connect with multiple peripheral devices in vehicle for different applications.

in-vehicle-computer-for-public-transportation-video-surveillence

Wide Range Temperature

IEI fanless product series has leading-edge thermal design and has been tested under extreme temperature conditions in order to ensure that IEI fanless products can work in any harsh environment.

ivs-in-vehicle-computer-operating-temperature

in vehicle box pc with e-mark

E-mark Certification

All vehicles, vehicle parts, and electronic products for the car must be enforced EMC testing. IEI IVS and IKARPC In-Vehicle series product all get E-Mark certification which are required for the European market.


Vibration and Shock Resistance

In-vehicle systems must be able to withstand the shock and vibration that comes with driving a vehicle. IEI transportation series meet the requirement for different environments and has passed particular verification dependent on MILSTD-810G 514.5 standard, EN61373 for railway market, EN60721 for in-vehicle market.

MIL-STD-810F IEI vehicle box pc
MIL-STD-810F IEI vehicle box pc-2

in-vehicle-box-pc-power-management

Particular Power Solution

We design wide power input to prevent surge when starting engine. We develop power management for users. For in-vehicle market, we design wide DC input and ACC power to ensure users can operate the system well.

vehicle box pc power management solution

[Webinar] Smart Transportation : IVS-300-ULT3 In Vehicle Computer


Fully Integrated I/O

IVS-invehicle-box-pc fully integrated IO Port

Dimensions

IVS-in-vehicle-box-pc dimensions

Hardware Spec.

Form factor
SBC Form Factor CPU: Intel® Skylake ULT /Baytrail processor
Chipset: SoC
System Memory:2 x 204-pin DDR3L SO-DIMM. 1 x 4GB pre-installed
I/O Interface
I/O Ports 2 x USB3.0
4 x PoE IEEE802.3af (one port max 15.4W)
2 x DB-9 RS-232
1 x DB-15 isolated RS-422/485
Isolated 8-bit digital I/O (4-bit input, 4-bit output)
1 x DB9 CAN-Bus/OBD-II
1 x VGA
1 x HDMI™
1 x Mic in, 1 x Line out
2 x SIM slot
Expansion Slots
Expansion Slots 1 x Half-size PCIe Mini (reserved for Wi-Fi)
1 x Full-size PCIe Mini (reserved for 3G)
1 x Full-size PCIe Mini (only for skylake platform)
System
Cooling method / System Fan Fanless
Drive Bays 2 x 2.5” SATA 3Gb/s HDD/SSD drive bay
Indicator&Buttons
Indicators 8 x LED (4 PoE, 1 HDD, 1 Wi-Fi, 2 SIM)
Color
Color Blue C
Dimensions
Dimensions 255 x 80 x 185
Weight
Weight 3kg/4.5kg
Environment
Operating Temperature -20°C ~ 60°C with air flow
Humidity 5% ~ 95%, non-condensing

Ordering Information

IVS-300-BT-J1/4G-R10 Fanless embedded system with Intel® Celeron® Processor J1900 (10W) Processor with 4GB DDR3L pre-installed memory, PoE, on board GPS, HDMI™, VGA, two 2.5" removable SATA HDD bay, RoHs
IVS-300-ULT3-i5/4G-R10 Fanless embedded system with Intel® Core™ i5-6300U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI™, VGA, two 2.5" removable SATA HDD bay, RoHs
IVS-300-ULT3-i7/4G-R10 Fanless embedded system with Intel® Core™ i7-6600U (15W) Processor (ULT) with 4GB DDR4L pre-installed memory, PoE, on board GPS, HDMI™, VGA, two 2.5" removable SATA HDD bay, RoHs

Package Contents

Package Content
  • 1 x ACC power cable

  • 1 x GPS/GSM antenna
