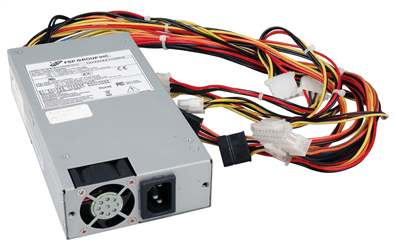

1U 250 W ATX Power Supply with ErP

End of Life

End of Life Notice

* Effective Date: 2019/10/29

1U 250 W ATX Power Supply with ErP

Hardware Spec.

Dimensions 100 x 190 x 40
Efficiency 85%
MTBF 100,000
Operating temperature -5°C ~ 50°C
Output Connector 20+4-pin ATX, 4-pin 12V, 4 x HDD,
2 x SATA,1 x FDD
Storage temperature -20°C ~ 80°C
Watt 250W
Voltage 90~264 VAC Full Range
Frequency 47 Hz ~ 63 Hz
Input Current 4A (RMS)@115VAC, 2A (RMS)@230VAC
Inrush Current 50A max for 115VAC
100A max for 230VAC
Voltage +3.3V/14A,+5V/16A,+12V1/16A,+12v2/16A,-12V/0.5A,+5Vsb/3A,-5V/0.3A

Ordering Information

ACE-A225A-R11 1U 250 Watts ATX Power Supply with ERP,CCL;RoHS
