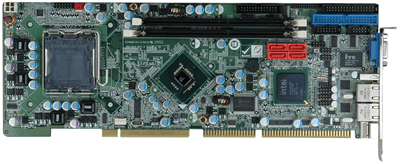

WSB-G41A

PICMG 1.0 CPU Card with Intel® G41 supports LGA 775 Intel® Core™2 Quad

End of Life

End of Life Notice

* Effective Date: 2017/09/04

» PICMG 1.0 form factor
» Supports Intel® LGA 775 Core™2 Quad processor up to 1333 MHz FSB
» Dual-channel 800/1066 MHz DDR3 SDRAM supported up to 8 GB
» Dual Intel® GbE controller, four SATA 3Gb/s, and two RS-232 serial port connectors
» IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Hardware Spec.

System CPU
Chipset Intel® G41 + ICH7
Memory Max. Two 240-pin 4 GB (max.) 800/1066 MHz dual-channel
DDR3 SDRAM DIMMs supported (system max. 8 GB)
CPU Socket LGA775
I/O Interface Ethernet
Digital I/O 8-bit digital I/O
Display VGA integrated in Intel® G41
DVI by Silicon Image SIL1362 (WSBG41A-
DVI only)
Audio 10-pin on-board header connects to the
IEI audio kit
Power Power consumption
Environment Operating Temperature
Humidity 5% ~ 95%, non-condensing
Option iRIS
Storage Storage
Expansion Slots Expansion Slots
Watchdog Timer Watchdog Timer
CPU Cooler CPU Cooler
I/O Interface I/O Interface
1 x KB/MS
6 x Internal USB 2.0
2 x Internal RS-232
1 x USB 2.0

Ordering Information

WSB-G41A-DVI-R11 PICMG 1.0 with Intel G41 support LGA775 Intel Core 2 Quad CPU Card With VGA/DVI,DDR3,Dual PCIe GbE,SATAII,COM,USB 2.0,Audio,RoHS
WSB-G41A-R11 PICMG 1.0 with Intel G41 support LGA775 Intel Core 2 Quad CPU Card With VGA,DDR3,Dual PCIe GbE,SATAII,COM,USB 2.0,Audio,RoHS
