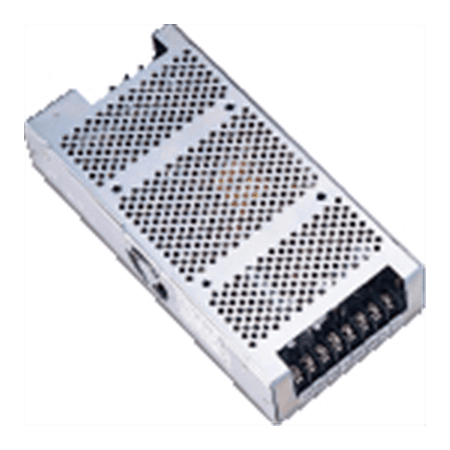

ACE-716A/AP

150 W 1U Type AT Power Supply

End of Life

End of Life Notice

* Effective Date: 2019/12/19

150 W 1U Type AT Power Supply

Hardware Spec.

General
Dimensions 198 x 97 x 40.5
Efficiency 75%
MTBF 149,000
Operating temperature -20°C ~ 70°C (50°C ~ 70°C derating curve)
Output Connector Optional cable
Storage temperature -20°C ~ 85°C
Watt 150W
Input
Voltage 90~264 VAC Full Range
Output
Voltage +5V/18A,+12V/4A,-5V/0.5A,-12V/1A

Ordering Information

ACE-716AP-RS Rugged AC input 150W PFC power supply;;;;CCL;RoHS
ACE-716A-RS Rugged AC input 150W power supply;;;;CCL;RoHS
