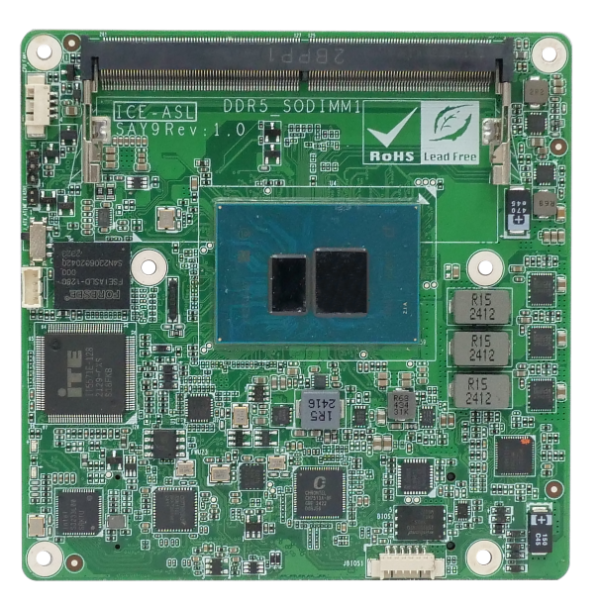

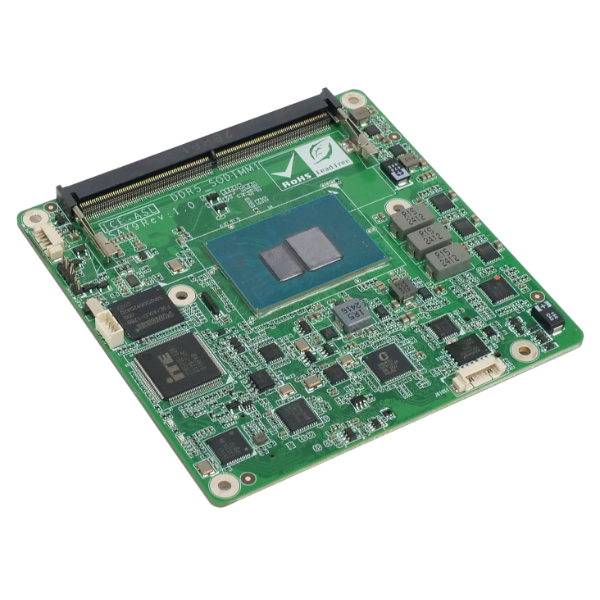

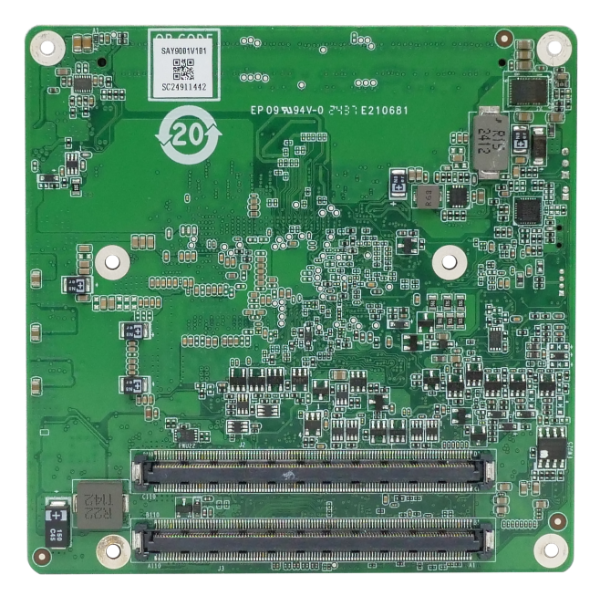

ICE-ASL-T6C
» COM Express® R3.1 Type 6 Module supports Intel® Amston Lake Atom™ x7000 series SoC processor
» 1 x DDR5 4800 SO-DIMM, up to 16GB
» Triple independent display signals to baseboard
1 x LVDS: 1920 x 1080 or 1 x eDP:4096 x 2304 @ 60Hz
2 x DDI: (DP up to 4096 x 2160 @ 60Hz / HDMI up to 4096 x 2160 @ 60Hz)
» Support 1 x PCIe 2.5 GbE with Intel® i226-V signal to baseboard
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | COM Express® R3.1 Type 6 Module Compact size |
| System | |
|---|---|
| CPU | Intel® Amston Lake Atom™ x7000 series SoC processor Intel Atom® x7433RE on-board CPU Intel Atom® x7835RE on-board CPU |
| Memory | 1 x DDR5 4800 SO-DIMM |
| Memory Max. | up to 16GB |
| Cooling method / System Fan | 1 x CPU fan connector (1x4 pin) 1 x System fan connector (1x4 pin) |
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 95 x 95 mm |
| Net Weight | GW: 600g / NW: 250g |
| Storage | |
|---|---|
| Storage | 2 x SATA : 3GB/s signal to base board onboard eMMC optional (up to 256G) |
| I/O Interface | |
|---|---|
| Display Output | 1 x Display Port : display signals to baseboard up to 4096 x 2160 @ 60Hz |
| 1 x HDMI™ : display signals to baseboard up to 4096 x 2160 @ 60Hz | |
| 1 x LVDS : display signals to baseboard : 1920 x 1080 or 1 x eDP display signals to baseboard :4096 x 2304 @ 60Hz | |
| Ethernet | 1 x LAN : PCIe 2.5 GbE with Intel® i226-V signal to baseboard |
| Audio | 1 x HD Audio : signal to baseboard |
| I/O Interface | 1 x CAN-bus/OBD-II : signal to baseboard (Default, Option with one COM Port & one USB 2.0) |
| 1 x GPIO : 8 bit GPIO signal to baseboard | |
| 1 x I²C : 1 x 4-pin wafer signal to baseboard | |
| 8 x Internal USB 2.0 : signal to baseboard (one colay with CAN) | |
| 3 x Internal USB 3.2 Gen2x1 : signal to baseboard | |
| 2 x UART : signal to baseboard | |
| Expansion | 5 x PCIe x1 : Gen3 x1 signal to baseboard |
| Other Features | |
|---|---|
| TPM | 1 x On-board TPM |
| Power | |
|---|---|
| Power Consumption | TBD |
| Power Supply | ATX: Vin, VSB; AT: Vin 12 V power input |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 65°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| ICE-ASL-T6C-R4-R10 | COM Express Compact size Type 6 Module, Intel® ASL x7835RE Processor,DDR5, LVDS, DDI, 2.5GbE, SATAIII, USB 3.0 and HD Audio, RoHS |
| ICE-ASL-T6C-R3-R10 | COM Express Compact size Type 6 Module, Intel® ASL x7433RE Processor,DDR5, LVDS, DDI, 2.5GbE, SATAIII, USB 3.0 and HD Audio, RoHS |
| ICE-ASL-T6C-N2-R10 | COM Express Compact size Type 6 Module, Intel® ADL N97 Processor,DDR5, LVDS, DDI, 2.5GbE, SATAIII, USB 3.0 and HD Audio, RoHS |
