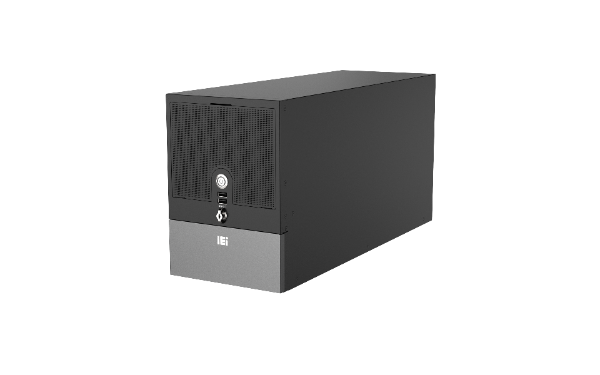

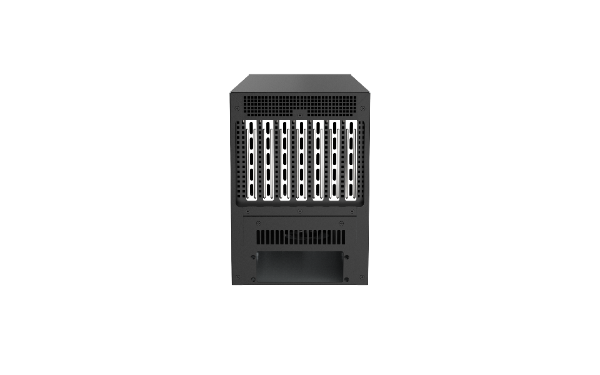

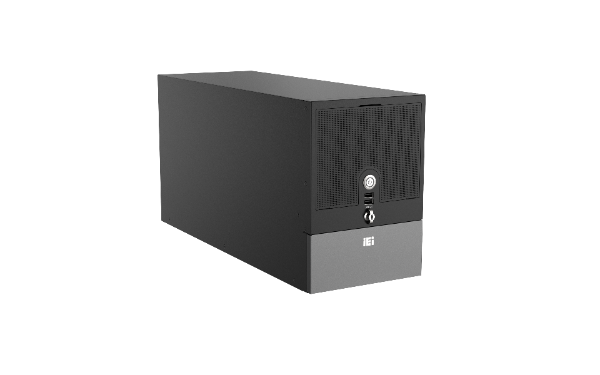

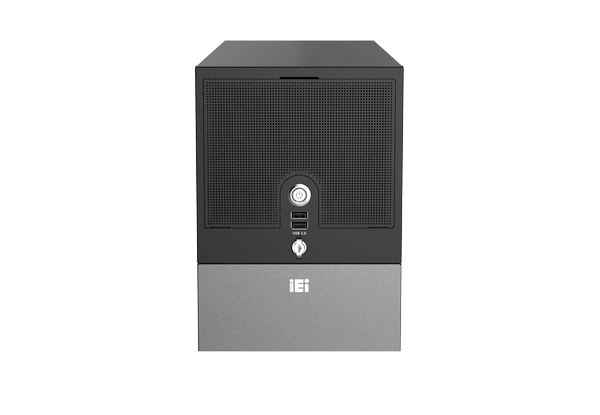

PAC-2700B
» 7-slot full-size Compact PCI chassis for full-size CPU card
» Supports 1U Flex ATX PSU or 1U redundant PSU
» Two front 3.5”/2.5” hot-swappable HDD/SSD drive bays
» Three cooling fans: two front intake fans and one bottom exhaust turbo fan
» Removable fine-mesh front fan filter for easy maintenance
» Two USB 2.0 ports on the front panel
» Lockable front door for system security
» RoHS-compliant design
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Full-size CPU card |
| I/O Interface | |
|---|---|
| I/O Ports | 2 x USB 2.0 (front) |
| Expansion Slots | |
|---|---|
| Expansion Slots | 7 slots |
| System | |
|---|---|
| Cooling method / System Fan | 2 x front intake fans 1 x bottom turbo exhaust fan |
| Drive Bays | 2 x hot-swappable 3.5”/2.5” HDD/SSD drive bays |
| Indicator&Buttons | |
|---|---|
| Buttons | Power switch, reset button |
| Indicators | Power LED |
| Physical Characteristics | |
|---|---|
| Construction | Heavy duty metal |
| Color | |
|---|---|
| Color | Black |
| Dimensions | |
|---|---|
| Dimensions | 167 x 481.85 x 236 mm |
| Weight | |
|---|---|
| Weight | TBD |
| Environment | |
|---|---|
| Operating Temperature | -10°C ~ 60°C |
| Humidity | 10% ~ 90% |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (with SSD) |
| Safety & EMC | CE/FCC compliant |
