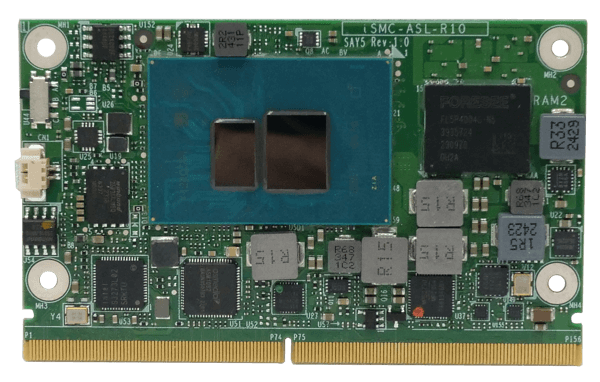

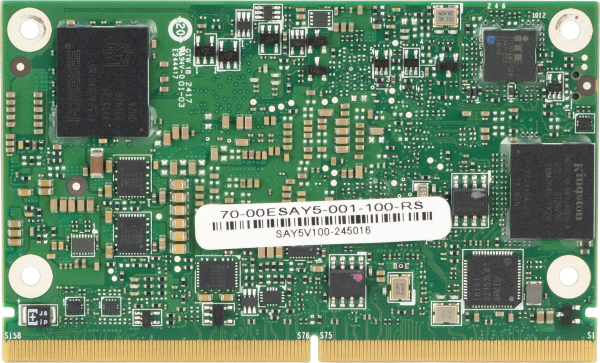

» Intel® Amston Lake & Alder Lake-N on-board SoC
» Support Intel® I226-V 2.5 GbE Ethernet controller
» Support triple independent displays via DP HDMI and LVDS(or eDP)
» Support four PCIe Gen3 x1 for expansions
» Support two USB 3.2 Gen2 and six USB 2.0
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | SMARC™ module |
| System | |
| CPU |
Intel® Alder Lake-N/Amston Lake on-board SoC Intel® Alder Lake-N N97 SoC Processor Intel® Atom™ x7433RE SoC Processor |
| Memory | LPDDR5-5500Gbps 8GB, up to 16GB |
| Memory Max. | 16GB |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 82 x 50 |
| Storage | |
| Storage | 1 x eMMC : onboard eMMC optional (up to 256G) |
| 1 x SATA : signal to baseboard, 6Gb/s | |
| I/O Interface | |
| Display Output | 1 x Display Port : signal to baseboard, 4096 x 2160 @ 60Hz |
| 1 x HDMI™ : signal to baseboard, 3840 x 2160 @ 30Hz | |
| 1 x LVDS : colay with eDP | |
| Ethernet | 2 x LAN : 2.5 GbE Intel® I226-V signal to baseboard |
| I/O Interface | 4 x Internal RS-232 : UART signal to baseboard |
| 6 x Internal USB 2.0 : signal to baseboard | |
| 2 x Internal USB 3.2 Gen2x1 : signal to baseboard (10 Gb/s) | |
| Expansion | 4 x PCIe x1 : signal to baseboard |
| Power | |
| Power Supply | 5V DC |
| Environment | |
| Operating Temperature | 0°C~60°C |
| Storage Temperature | -30°C~70°C |
| Humidity | 5% ~95%, non-condensing |
Ordering Information
| iSMC-ASL-R3C-R10 | SMARC® Rev. 2.1 module supports Intel® ASL x7433RE SoC Processor, with 8GB LPDDR5 memory on board default, Support DP, HDMI, 2.5GbE,SATA 6Gb/s, USB 3.2, GPIO, CAN, Audio and RoHS |
|---|---|
| iSMC-ASL-N2C-R10 | SMARC® Rev. 2.1 module supports Intel® N-series N97 SoC Processor, with 8GB LPDDR5 memory on board default, Support DP, HDMI, 2.5GbE,SATA 6Gb/s, USB 3.2, GPIO, CAN, Audio and RoHS |
Package Contents
| Package Content |
|
|---|
