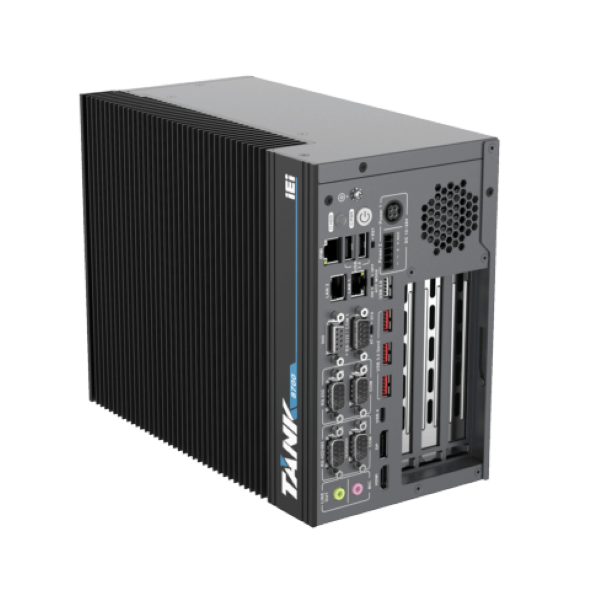

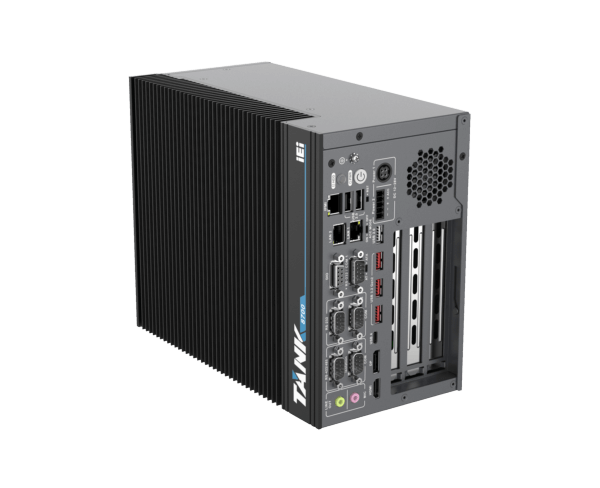

TANK-8700-MPHX

High-Performance AMD Ryzen™ 7000/8000 Series Mobile Processor, Fanless Embedded Computer

» Supported CPUs:
AMD Ryzen™ 7000/8000 Series Mobile Processor
AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W)
AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W)
AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W)
» 2 x 2.5GbE ports
» Multiple USB ports and serial ports
» Multiple M.2 expansions and PCIe expansions
» Three independent display
» Support IPMI remote management
» CE/FCC compliant

Specifications

Hardware Spec.

Form factor
SBC Form Factor
  • CPU:
    AMD Ryzen™ 7000/8000 Series Mobile Processor
    AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W)
    AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W)
    AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W)
  • Chipset: SoC
  • System Memory: 2 x SO-DIMM DDR5 5600 (16GB pre-installed) (up to 96GB)
  • Power: DC Jack: 12 ~ 28V DC
  • Terminal Block: 12 ~ 28V DC (with ACC Mode)
  • Consumption: 19V@3.79 A (AMD Ryzen™ 9 7940HS with 8 GB memory)
I/O Interface
I/O Ports
  • USB:
    3 x USB 3.2 Gen2
    3 x USB 2.0
  • Ethernet:
    2 x 2.5 GbE by Realtek 8125B controller
    1 x RJ45 by M.2 IRIS2 Module
  • COM Port:
    2 x RS-422/485 (with 2K isolation) (DB9)
    3 x RS-232 (DB9)
  • Digital I/O:
    8-bit (4-in/4-out) DB9 (Female)
  • Display:
    1 x HDMI
    1 x DP++
    1 x USB4 (Display + USB 3.2 Gen2)
  • Audio:
    1 x Mic
    1 x Line-out
  • TPM:
    1 x 20pin TPM connector (Optional TPM-IN03 module)
  • Watchdog Timer:
    Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
  • M.2:
    1 x M.2 M key (2280, PCIe Gen4 x2)
    1 x M.2 A key (2230, PCIe Gen3 x1 & USB 2.0)
    1 x M.2 B Key (3042/52/80, PCIe Gen3 x1 or support IRIS2 module)
  • Backplane:
    1 x PCIe Gen4 x8
    1 x PCIe Gen3 x4
    1 x PCIe Gen3 x1 (Only supports 3A SKU)
    1 x PCI (Only supports 3B SKU)
System
Cooling method / System Fan Fanless
4-pin external system fan connector
Drive Bays 2 x 2.5” SATA 6Gb/s HDD/SSD bay
Indicator&Buttons
Buttons 1 x Power button
1 x Reset button
1 x AT/ATX switch
Indicators 1 x Power LED (green)
1 x HDD LED (yellow)
Physical Characteristics
Construction Extruded aluminum alloy
Color
Color Black C + Iron Gray
Dimensions
Dimensions 254.4 x 205 x 127.2
Weight
Weight 3.96 kg / 5.5 kg
Environment
Operating Temperature -20°C ~ 60°C
Humidity 10% ~ 95% non-condensing
Operating Vibration Half-sine wave shock 5G, 11ms, 100 shocks per axis (With SSD)
Operating Shock MIL-STD-810G 514.6C-1 (With SSD)
Safety & EMC CE/FCC compliant
OS Support
OS Support Microsoft Windows 10 / Windows 11, Linux

Ordering Information

TANK-8700-MPHX-89AD-3B-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28V DC, RoHS
TANK-8700-MPHX-89AD-3A-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 9 8945HS 4.0 GHz, (up to 5.2 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1,HDMI/DP/USB4, 12-28V DC, RoHS
TANK-8700-MPHX-87AD-3B-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28VV DC, RoHS
TANK-8700-MPHX-87AD-3A-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 7 8845HS 3.8 GHz, (up to 5.1 GHz, 8 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12-28V DC, RoHS
TANK-8700-MPHX-85AD-3B-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCI, HDMI/DP/USB4, 12-28V DC, RoHS
TANK-8700-MPHX-85AD-3A-R10 Ruggedized Fanless embedded system with AMD Ryzen™ 5 8645HS 4.3 GHz, (up to 5.0 GHz, 6 Core, TDP 45W), 16GB DDR5 pre-installed memory, PCIe x8/PCIe x4/PCIe x1, HDMI/DP/USB4, 12-28V DC, RoHS

Package Contents

Package Content

  • 1 x Wall mounting kit

  • 1 x Screw pack

  • 2 x Terminal block
