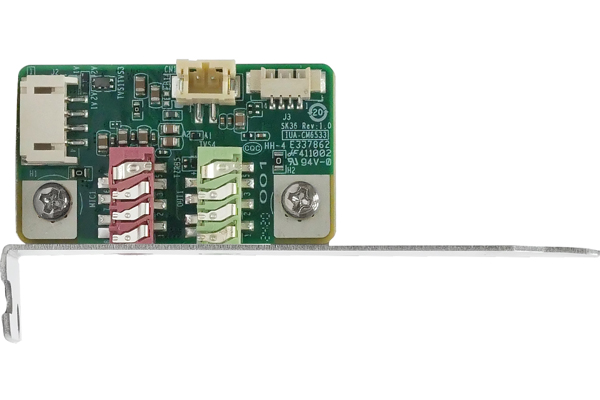

iUA-CM6533
» C-MEDIA CM6533 Audio Chip
» USB2.0 interface
» Two audio jacks for mic in & line out
» Built-in two 1.5W power amplifier
» speaker outputs
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | USB2.0 |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 44mm x 25mm |
| I/O Interface | |
| Audio |
Description: Audio IC CM6533 Half-height bracket |
| 1 x Line in : MIC in (audio jack) | |
| 1 x Line out : audio jack | |
| 2 x Speaker : Built-in output 4pin P=1.25mm (1.5W amplifier) | |
| Environment | |
| Operating Temperature | 0°C ~ 60°C |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 10% ~ 95%, non-condensing |
Ordering Information
| iUA-CM6533-R10 | IEI USB Audio adapter board, small size, Mic in, Amplifier speaker output, Line-out, RoHS |
|---|
Package Contents
| Package Content |
|
|---|
