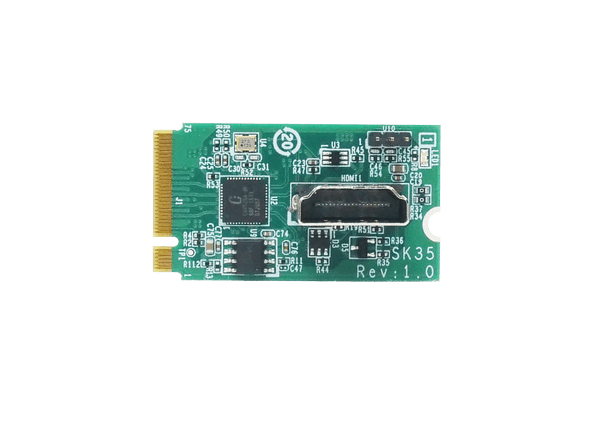

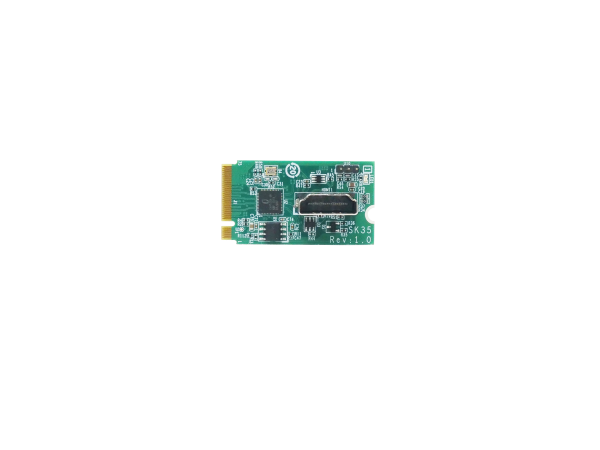

iDPM-HDM
HDMI™ converter board, Resolution support up to HDMI™ 1.4b 4K@30Hz
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | iDPM 2240 slot (IEI-defined B key) |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 40 mm x 22 mm |
| I/O Interface | |
| Display Output | 1 x HDMI™ : 1.4b 4K@30Hz |
| Environment | |
| Operating Temperature | 0~60℃ |
| Storage Temperature | -30°C ~ 70°C |
| Humidity | 5% ~95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information
| iDPM-HDM-R10 | HDMI converter board (For iDPM connector), RoHs |
|---|
Package Contents
| Package Content |
|
|---|
