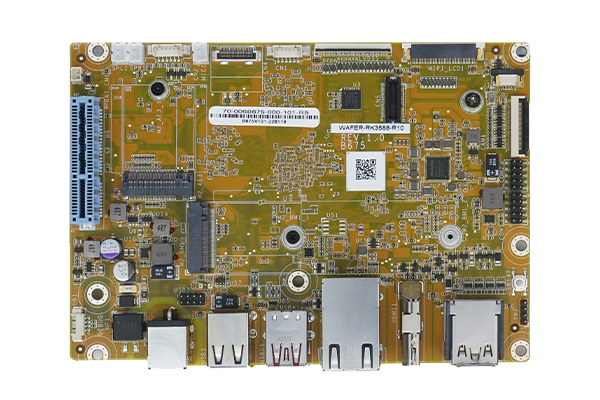

WAFER-RK3588
» 3.5” SBC with Quad-core Cortex-A76 and quad-core Cortex-A55, up to 2.4GHz
» Built-in AI accelerator NPU with processing performance of up to 6.0 TOPS, supports int4/int8/int16/FP16/BF16/TF32
» Built-in 4 core GPU Mali G610 (4x256KB L2 Cache) supports OpenGLES3.2/OpenCL2.2/Vulkan1.1
» Multi-channel input output: 4K HDMI™ input, 8K HDMI™ output, MIPI, LVDS, MIPI_DSI and Camera MIPI_CSI input
» Rich I/O: 2.5GbE, GbE RJ45, USB 3.2 GEN 1, USB2.0
» Expansion slot: PCIe 3.0 x2, M.2 B/M key, M.2 A/E key
» Optional WiFi5/WiFi6/BLE 5.0
» OS supports Android13 / Debian 11 (Linux Kernel 5.10)
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor | 3.5” SBC |
| System | |
| CPU |
|
| Memory | On-board 8GB LPDDR4x |
| Supported OS | Android 13, Linux Debian 11 |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 146 x 102 |
| Storage | |
| Storage | 1 x SATA : 3.0 up to 6 Gb/s |
| eMMC : 32GB NAND Flash for OS and IEI's boot loader | |
| I/O Interface | |
| Display Output |
2 x HDMI™ - 1 x HDMI-output up to 8K@60Hz 1 x HDMI-output up to 4K@60Hz |
| 1 x LVDS | |
| 1 x MIPI DSI | |
| Ethernet |
2 x LAN - 1 x GbE LAN 1 x 2.5 GbE LAN |
| Audio | Description: Pin header to Mic-in / line-out jack |
| 2 x Speaker (2pin header) | |
| I/O Interface | 2 x External USB 2.0 (Type A) |
|
3 x Video - 1 X HDMI-input up to 4K@60FPS 1 x HDMI-output up to 8K@60Hz 1 x HDMI-output up to 4K@60Hz |
|
|
2 x External USB 3.2 Gen1x2 - 1 x USB 3.2 GEN 1 Type C with DP (OS update) 1 x USB 3.2 GEN 1 Type A |
|
| UART (2x9pin header) | |
| Expansion |
2 x M.2(NGFF) - 1 x M.2 2230/2280 B/M key (PCIe 3.0 x2) 1 x M.2 2230 A/E key (PCIe 2.0 x1) |
| 1 x PCIe (PCIe 3.0 x2) | |
| Wireless | |
| Wi-Fi | Support Wi-Fi 5/6 (board to board IEI module optional) |
| Bluetooth | Bluetooth V5.0 optional |
| Other Features | |
| Camera | Support MIPI CSI |
| Power | |
| Input | 12V DC |
| Environment | |
| Operating Temperature | 0°C ~ 60°C with air flow |
| Storage Temperature | -20°C ~ 60°C |
| Humidity | 5% ~ 95% relative humidity, non-condensing |
| Certifications | |
| Safety & EMC | EMC Class B |
Ordering Information
| WAFER-RK3588-Y/CE-R10 | 3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4 memory & 32GB eMMC NAND Flash, Yocto platform |
|---|---|
| WAFER-RK3588-D/CE-R10 | 3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4 memory & 32GB eMMC NAND Flash, Debian platform |
| WAFER-RK3588-A/CE-R10 | 3.5” SBC supports Rockchip RK3588 Processors with 8GB LPDDR4 memory & 32GB eMMC NAND Flash, Android platform |
Package Contents
| Package Content |
|
|---|
