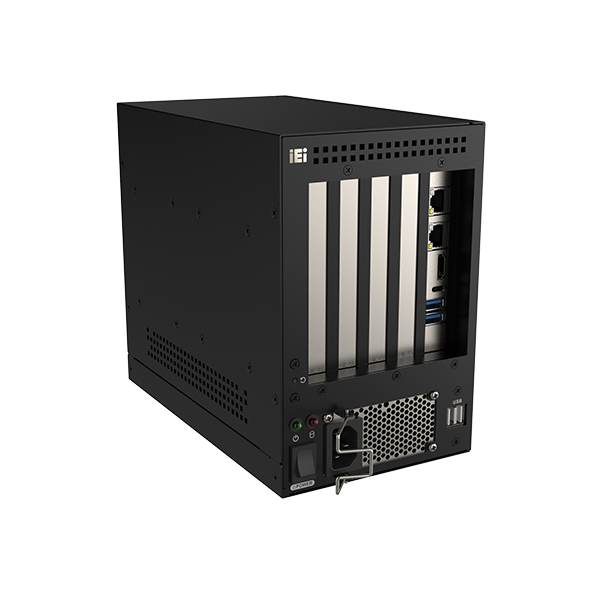

PR-3500
» RoHS compliant design
» Two USB ports on the front panel
» One 8cm fan
» Two 2.5” internal HDD bay
» Supports half-size CPU card
Hardware Spec.
| Form factor | |
|---|---|
| SBC Form Factor | Half-size CPU card |
| I/O Interface | |
|---|---|
| I/O Ports | 2 x USB |
| Expansion Slots | |
|---|---|
| Expansion Slots | 5 slots |
| System | |
|---|---|
| Cooling method / System Fan | 1 x 8 cm |
| Drive Bays | 2 x 2.5” HDD |
| Indicator&Buttons | |
|---|---|
| Buttons | Power switch, Reset button |
| Indicators | Power, HDD |
| Physical Characteristics | |
|---|---|
| Construction | Heavy duty metal |
| Color | |
|---|---|
| Color | Black |
| Dimensions | |
|---|---|
| Dimensions | 233.2 x 195 x 130 (mm) |
| Weight | |
|---|---|
| Weight | 3.57/4.75 kg |
| Environment | |
|---|---|
| Operating Temperature | 0°C ~ 50°C |
| Humidity | 10% ~ 90% |
| Operating Vibration | Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD) |
| Operating Shock | MIL-STD-810G 514.6C-1 (SSD) |
| Safety & EMC | CE/FCC compliant |
