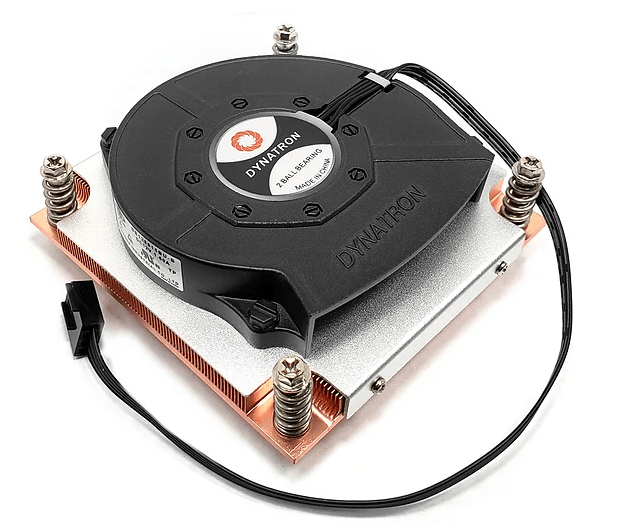

High performance thermal solutions
Hardware Spec.
| General | |
|---|---|
| Operating temperature | 0°C ~ 40°C |
| Description | |
| Description | For special models: IMBA-Q470 & IMBA-Q471 |
| CPU Solution | |
| CPU Solution | Intel® Core™ i9/i7/i5/i3 |
| Socket Solution | |
| Socket Solution | LGA 115X/1200 |
| Dimensions | |
| Dimensions | 92.5 x 90 x 30.15 mm |
| Material | |
| Material | Al |
| Bearing Type | |
| Bearing Type | Two-Ball |
| Capability (Watt) | |
| Capability (Watt) | 125W |
| Fan Speed (RPM) | |
| Fan Speed (RPM) | 7000 |
| Noise Level (dBA) | |
| Noise Level (dBA) | 59 |
| Life Expectancy (hrs) | |
| Life Expectancy (hrs) | 80000 |
| Weight | |
| Weight | 435g |
| Key Features | |
| Key Features | LGA1200 CPU cooler, RoHS |
Ordering Information
| 19100-000312-00-RS | SAO8;COOLER MODULE;HEATSINK+FAN:92.5*90*30.15mm,LGA1200,125W;STANDARD;00;DYNATRON:T498 COOLING FAN;FAN:12V,4P,225MM,7000RPM,2 BALLS BEARING;DYNATRON;DB128015BU-B;CCL;RoHS |
|---|
