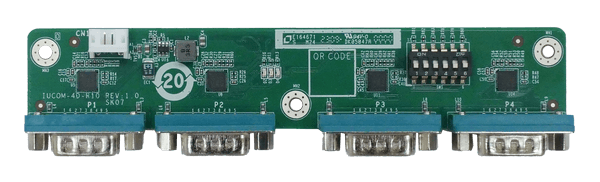

iUCOM-4D

USB Module supports four RS-232/422/485 Port (DB-9), RoHs

iUCOM-4D IO
  • iUCOM-4D IO
» Quad-port RS-232/422/485
» 1024 bytes transmit / 512 bytes receive FIFO
» High-speed 16C550/16C650/16C750/16C850 compatible UARTs
» Baud rate supports 115.2K, max. up to 6M

Hardware Spec.

Form Factor
Form Factor USB2.0 (1*4pin, P=2.0)
* USB Bridge to Quad Serial Port: WCH CH344
* Buffer/Transceiver Series: Fintek 81435
Physical Characteristics
Dimensions (LxWxH) (mm) 140mm * 35mm
I/O Interface
I/O Interface 4 x External RS-232/422/485 : DB-9
Environment
Operating Temperature 0°C – 60°C
Storage Temperature -30°C – 70°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

iUCOM-4D-R10 USB Module supports four RS-232/422/485 Port(DB9), RoHs

Package Contents

Package Content
  • 1 x iUCOM-4D peripheral board

  • 1 x QIG

  • 1 x USB Cable(P=2.0)

  • 1 x USB Cable(P=2.54)
