» Two-ports RS-232/422/485 (DB-9)
» 1024 bytes transmit/ 512 bytes receive FIFO
» High-speed 16C550/16C650/16C750/16C850 compatible UARTs
» Baud rate supports 115.2K, max. up to 6M
Hardware Spec.
| Form Factor | |
|---|---|
| Form Factor |
USB2.0 (1*4pin, P=2.0) * USB Bridge to Quad Serial Port: WCH CH342 * Buffer/Transceiver Series: F81435 |
| Physical Characteristics | |
| Dimensions (LxWxH) (mm) | 65mm * 35mm |
| I/O Interface | |
| I/O Interface | 2 x External RS-232/422/485 : DB-9 |
| Environment | |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -30°C –70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information

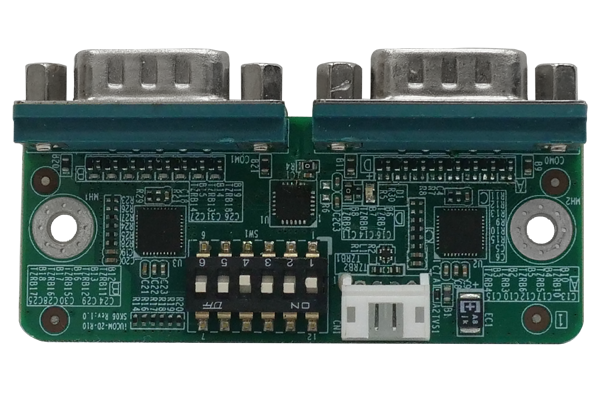

| iUCOM-2D-R10 | USB Module supports two RS-232/422/485 Port(DB9), RoHs |
|---|
Package Contents
| Package Content |
|
|---|
