Din-rail Embedded System

DRPC Series

Fanless DIN Rail embedded system.
*User friendly installation design.
*OLED indicator function
*Fully integrated I/O
CPU
Expansion

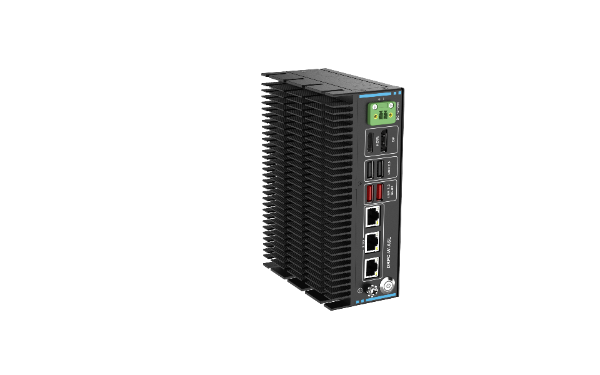

DRPC-W-EHL1

DRPC-W-EHL1

Fanless DIN-Rail Embedded System, Intel® Elkhart Lake Atom™x6000 Series Solution
● Supported CPU:
Onboard Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
Intel® Celeron® x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
Intel® Celeron® x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
Intel® Celeron® x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)
● Supported CPU:
Onboard Intel® Atom™ x6000 series / Pentium® / Celeron® processor (Elkhart Lake platform)
Intel® Celeron® x6211E on-board SoC (up to 3.0 GHz, dual-core, 1.5M Cache, TDP=6W)
Intel® Celeron® x6413E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=9W)
Intel® Celeron® x6425E on-board SoC (up to 3.0 GHz, quad-core, 1.5M Cache, TDP=12W)
● M.2:
1 x 2230 M.2 A Key (PCIe Gen3 x2 & USB 2.0)
1 x 3042 M.2 B Key (PCIe Gen3 x2 & USB 2.0)
● M.2:
1 x 2230 M.2 A Key (PCIe Gen3 x2 & USB 2.0)
1 x 3042 M.2 B Key (PCIe Gen3 x2 & USB 2.0)
View Products

DRPC-140 Right Side

DRPC-140-EHL

Fanless DIN-Rail Embedded System
● Supported CPU:
Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
● Supported CPU:
Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
● M.2:
1 x M.2 A Key 2230 (PCIe Gen3 x1/USB 2.0)
1 x M.2 M Key 2280 (PCIe Gen3 x2)
● M.2:
1 x M.2 A Key 2230 (PCIe Gen3 x1/USB 2.0)
1 x M.2 M Key 2280 (PCIe Gen3 x2)
View Products

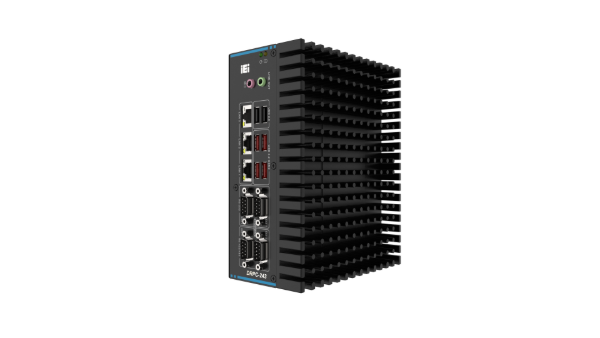

DRPC-242-ADL-P Front

DRPC-242-ADL-P

Fanless DIN-Rail Embedded System
● Supported CPU:
Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP)
Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
Intel® Celeron® 7305 (5-core, 15W TDP)
● Supported CPU:
Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP)
Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
Intel® Celeron® 7305 (5-core, 15W TDP)
● M.2:
1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) Support Vpro
1 x 3042/52 B-key (PCIe Gen3 x1/USB 3.2 Gen2/USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key
1 x 2280 M-key (PCIe Gen4 x4)
● Backplane:
1 x PCIe Gen3 x4 (optional)
● M.2:
1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) Support Vpro
1 x 3042/52 B-key (PCIe Gen3 x1/USB 3.2 Gen2/USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key
1 x 2280 M-key (PCIe Gen4 x4)
● Backplane:
1 x PCIe Gen3 x4 (optional)
View Products

DRPC-124 Front right side

DRPC-124-EHL

Fanless DIN-Rail Embedded System
● Supported CPU:
Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
● Supported CPU:
Intel® Celeron® J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
● M.2:
1 x 2242 B-key (PCIe Gen3 x2)
1 x 2242 B-key (SATA)
1 x 2280 M-key (PCIe Gen3 x2)
● M.2:
1 x 2242 B-key (PCIe Gen3 x2)
1 x 2242 B-key (SATA)
1 x 2280 M-key (PCIe Gen3 x2)
View Products

IEI DRPC-W-TGL DIN-Rail embedded system supports Tiger Lake 11 th Gen Intel® Celeron™ Solution

DRPC-W-TGL

Fanless DIN-Rail Embedded System Tiger Lake 11th Gen Intel® Celeron® Solution (up to 4 cores)
● Supported CPU:
Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, TDP 15W)
Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, TDP 15W)
Intel® Core™ i3-1115G4E 2.2 GHz (up to 3.9 GHz, dual-core, TDP 15W)
Intel® Celeron® 6305/6305E 1.8 GHz (dual-core, TDP 15W)
● Supported CPU:
Intel® Core™ i7-1185G7E 1.8 GHz (up to 4.4 GHz, quad-core, TDP 15W)
Intel® Core™ i5-1145G7E 1.5 GHz (up to 4.1 GHz, quad-core, TDP 15W)
Intel® Core™ i3-1115G4E 2.2 GHz (up to 3.9 GHz, dual-core, TDP 15W)
Intel® Celeron® 6305/6305E 1.8 GHz (dual-core, TDP 15W)
● M.2:
1 x M.2 A Key 2230 for WIFI & BT (optional)
1 x M.2 B Key (PCIe x2) 3042/3052 w/SIM slot for 5G (optional)
● M.2:
1 x M.2 A Key 2230 for WIFI & BT (optional)
1 x M.2 B Key (PCIe x2) 3042/3052 w/SIM slot for 5G (optional)
View Products

DRPC-W-JL Fanless DIN-Rail Embedded System Jasper Lake Intel® Celeron™ Solution

DRPC-W-JL

Fanless DIN-Rail Embedded System
Jasper Lake Intel® Celeron™ Solution (up to 4 cores)
Intel® Celeron® N5105 2.0 GHz (up to 2.9 GHz, quad-core, TDP 10W)
Intel® Celeron® N5105 2.0 GHz (up to 2.9 GHz, quad-core, TDP 10W)
● M.2:
1 x M.2 A Key 2230 for WIFI & BT (optional)
1 x M.2 B Key (PCIe x2) 2242/2280 w/SIM slot for 5G (optional)
● M.2:
1 x M.2 A Key 2230 for WIFI & BT (optional)
1 x M.2 B Key (PCIe x2) 2242/2280 w/SIM slot for 5G (optional)
View Products

DRPC-W-EHL Fanless DIN-Rail Embedded System with Elkhart Lake Intel® Celeron™ Solution

DRPC-W-EHL

Fanless DIN-Rail Embedded System
Elkhart Lake Intel® Celeron™ Solution (up to 4 cores)
● Supported CPU:
Intel® Celeron™ J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
● Supported CPU:
Intel® Celeron™ J6412 2.0 GHz (up to 2.6 GHz, quad-core, TDP 10W)
● M.2:
1 x M.2 A Key 2230 for WIFI & BT (optional)
1 x M.2 B Key (PCIe x2) 3042 w/SIM slot for 5G (optional)
● M.2:
1 x M.2 A Key 2230 for WIFI & BT (optional)
1 x M.2 B Key (PCIe x2) 3042 w/SIM slot for 5G (optional)
View Products

DRPC-240-TGL-U Din-rail Embedded System

DRPC-240-TGL-U

Fanless DIN-Rail Embedded System with Tiger Lake 11 th Gen Intel® Core™ Solution (up to 4 cores)
Intel® Celeron® 6305E 1.8 GHz
Intel® Core™ i5-1145G7E 1.5 GHz
Intel® Core™ i7-1185G7E 1.8 GHz
Intel® Celeron® 6305E 1.8 GHz
Intel® Core™ i5-1145G7E 1.5 GHz
Intel® Core™ i7-1185G7E 1.8 GHz
●M.2:
1 x 2230 A-key
1 x 3042/52/80 B-key
1 x On-board SIM card socket (hinge type) for M.2 B key
●Backplane:
1 x PCIe x4
●M.2:
1 x 2230 A-key
1 x 3042/52/80 B-key
1 x On-board SIM card socket (hinge type) for M.2 B key
●Backplane:
1 x PCIe x4
View Products

DRPC-130-AL Din-rai Industrial Embedded System

DRPC-130-AL

Fanless DIN-Rail Embedded System
Intel® Atom™ x5-E3930 1.3GHz
Intel® Atom™ x5-E3930 1.3GHz
PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot
PCIe Mini:
1 x Half-size PCIe Mini slot
1 x Full-size PCIe Mini slot
View Products
