» Realtek ALC888S HD Audio codec IC supported
» Two audio jacks for mic in and line out
» Driver supports Windows® 2000/2003/XP/Vista/7/10 (32/64 bits) and Linux (Ubuntu or Debian)
Hardware Spec.
| Physical Characteristics | |
|---|---|
| Dimensions (LxWxH) (mm) | 50mm x 40mm |
| I/O Interface | |
| Audio | HD Audio : two audio jacks for mic in and line out |
| Environment | |
| Operating Temperature | 0°C – 60°C |
| Storage Temperature | -30 – 70°C |
| Humidity | 5% ~ 95%, non-condensing |
| Certifications | |
| Safety & EMC | CE/FCC compliant |
Ordering Information

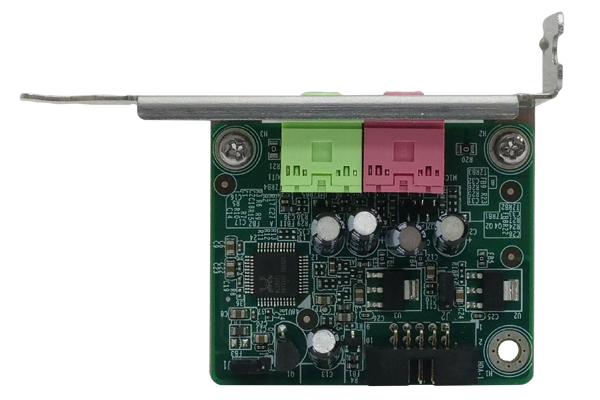

| AC-KIT2-888S-R10 | Realtek ALC888S 7.1 Channel HD Audio peripheral board,small size,RoHS |
|---|
Package Contents
| Package Content |
|
|---|
