AFL4-W13-EHL

13.3” Fanless Panel PC with Intel® Celeron® Processor J6412

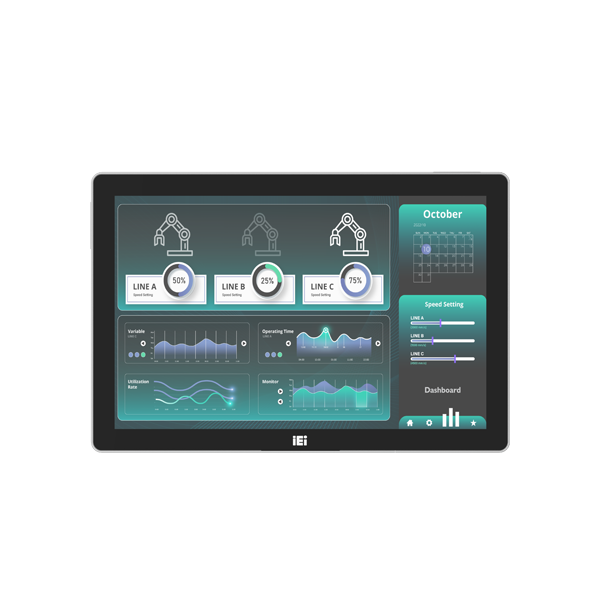

FL4-W13-EHL Front
FL4-W13-EHL Right
FL4-W13-EHL Left
FL4-W13-EHL IO
  • FL4-W13-EHL Front
  • FL4-W13-EHL Right
  • FL4-W13-EHL Left
  • FL4-W13-EHL IO
» Intel® Elkhart Lake Platform
» New narrow bezel design
» Anti-glare and Anti-UV PCAP
» Support Gloved and Wet Hand Operation
» Support WiFi 6E and Bluetooth 5.2

The {{ store.modelName }} is the 4th generation of IEI AFOLUX Panel PC. AFOLUX, standing for affordable luxury, is designed to provide versatile, cost-effective solutions for light industrial markets such as factory automation, retail, medical, digital signage and POS (point of sale). It is fanless with aluminum casing, looks stylish like a tablet, and is powered by Intel® Celeron® J6412 processor and 8GB LPDDR4x soldered memory to deliver excellent performance at ultra-low power. Built with optimized PCAP touchscreen, rich I/O and advanced wireless communication capability by the latest technology – Wi-Fi 6E and Bluetooth 5.2, the {{ store.modelName }} is ideal for IoT applications requiring high-speed connectivity, large embedded RAM, and low power consumption.


{{ store.modelSize }} Fanless System Powered by
Intel® Quad-Core Processor & LPDDR4x Memory

Intel® Celeron® J6412 Processor, Burst up to 2.6 GHz

Powered by Intel® Celeron® J6412 processor (burst up to 2.6 GHz) and on-board 8GB LPDDR4x memory, the {{ store.modelName }} can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation (AFL3-W07A-AL) (AFL3-WxxA-AL), the {{ store.modelName }} offers 73%251% boost on CPU performance, making it perfect for multitasking.

Large and Reliable 8GB LPDDR4x Memory

Upgrading the memory from DDR3L to LPDDR4x not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system, cutting output driver power by 60% from 1.5V to 0.6V.

Powered by Intel® Celeron® J6412 processor (burst up to 2.6 GHz) and on-board 8GB LPDDR4x memory, the {{ store.modelName }} can deliver high levels of CPU and graphics performance at low power. Compared to the previous generation (AFL3-W07A-AL) (AFL3-WxxA-AL), the {{ store.modelName }} offers 73%251% boost on CPU performance, making it perfect for multitasking.

Upgrading the memory from DDR3L to LPDDR4x not only brings faster memory speeds at 4267MT/s, but also reduces the power consumption of the memory system, cutting output driver power by 60% from 1.5V to 0.6V.

Stylish Looks with Robust Protection

Front IP64 Ingress Protection

Water and dust ingress protection is crucial for some industrial environments where sanitation and cleanliness are required. The {{ store.modelName }}’s front panel is compliant with IP64  to protect it against pressure water and dust.

Dust-tight protection for maximum performance against flying dust, dirt, debris and other particulates

Protected against water splashed from all directions, limited ingress permitted.

True-flat Screen & Narrow Bezel

The panel PC features an elegant, slim and true-flat design, which make it a perfect choice to fit in any environment. True-flat screen surrounded with narrow bezel makes it easily to setup in landscape or portrait orientation, and is easy to maintain and clean.

Outstanding PCAP Touch Screen Technology

IEI's rugged touchscreen adapts a glass-glass PCAP touch technology with integrated industrial-grade controllers, which is further developed to fulfill industrial capability. IEI AFOLUX panel PCs with PCAP touchscreen allow customers to experience it using gloves in harsh environments such as food processing, chemical and beverage industries.

4K HDMI™ Expands Screen Real Estate

Featuring the latest Intel® UHD Graphics with 16 EUs, the AFL4 panel PC can connect with a second display via the HDMI™ port to deliver powerful hard decoding capability for you, ensuring no delay on streaming 4K videos. The HDMI™ port is located on the side panel, enabling easy access and connection to the TV/monitor with HDMI™ on the side.

Smaller in Size, Better in Flexibility

Compared to the previous generation, the size of the {{ store.modelName }} is greatly reduced to make it more compact to fit in more diversified environment. The rear chassis is significantly reduced by 24% (from 26.4 mm to 19.95 mm), and the front panel is also smaller by merely scaling down the frame without changing the screen size.

Durable Aluminum Die Casting Housing

The housing of the next-generation panel PC is constructed of aluminum die casting, featuring durable hardness, high corrosion resistance and excellent thermal conductivity. Compared to the previous generation that used PC/ABS plastic enclosure, the heat dissipation is significant increased due to aluminum’s great heat transfer advantages. The new gen is more suited for the industrial application that requires high chassis strength and impact toughness. Moreover, aluminum die casting is fully recyclable and reusable, which makes the panel PC a green product for being environmentally responsible.

AFL3-AL vs. AFL4-EHL

AFL3-AL AFL4-EHL
8GB 1866MHz DDR3L (1.5V) Max. RAM 8GB 4267MHz LPDDR4x (0.6V)
M.2 B+M key (USB + SATA signal) Storage Up to two M.2 M key
(PCle Gen3 + SATA signal)
W07: one M.2 slot
W10/W12/12/W13: two M.2 slots
IEEE 802.11 a/b/g/n/ac, Bluetooth 4.2 Wi-Fi & BT IEEE 802.11 a/b/g/n/ax, Bluetooth 5.2
Up to two serial ports Serial Ports Up to four serial ports
W07: two serial ports
W10/W12/12/W13: four serial ports
1GbE Max. LAN Speed 2.5GbE
PC + ABS Plastic Construction Aluminum die casting

AFL4-EHL vs. AFL3-AL

AFL4-EHL AFL3-AL
8GB 4267MHz LPDDR4x (0.6V) Max. RAM 8GB 1866MHz DDR3L (1.5V)
Up to two M.2 M key
(PCle Gen3 + SATA signal)
W07: one M.2 slot
W10/W12/12/W13: two M.2 slots
Storage M.2 B+M key (USB + SATA signal)
IEEE 802.11 a/b/g/n/ax, Bluetooth 5.2 Wi-Fi & BT IEEE 802.11 a/b/g/n/ac, Bluetooth 4.2
Up to four serial ports
W07: two serial ports
W10/W12/12/W13: four serial ports
Serial Ports Up to two serial ports
2.5GbE Max. LAN Speed 1GbE
Aluminum die casting Construction PC + ABS Plastic

Wireless Network Capability Simplifies IoT Deployment

The panel PC is designed with strong wireless network capability via a pre-installed Intel wireless network module. The latest Wi-Fi 6E and Bluetooth 5.2 technologies are provided to speed up data transmission through the internal 2T2R antennas, which eliminate cable interference while maintaining stable performance for high volume applications.

6 GHz Wi-Fi 6E
  • Wi-Fi 6E (802.11ax) provides a transmission speed up to 3.6 Gbps and supports the latest 6 GHz band
Bluetooth 5.2
  • Bluetooth 5.2 helps to connect Bluetooth devices seamlessly at a bandwidth of 2 Mbps and up to 300-meter transmission distance

2.5GbE High-Bandwidth Low-Latency Data Transmission

The equipped two RJ45 LAN portports provides 2.5GbE connectivity that gives an immediate boost to overall network performance and improves the bandwidth required at large-scale workloads. The 2.5GbE port supports up to 2.5x faster speed than standard gigabit Ethernet, optimizing deployment of smart surveillance and home automation to deliver lightning-fast transmission speed between devices.

{{ store.sec_8_title }}

{{ store.sec_8_p }}

{{ store.sec_9_title }}

{{ store.sec_9_p }}

{{ store.sec_9_usb.number }} USB
  • {{ item }}
{{ store.sec_9_com.number }} COM
  • {{ item }}
1.2W
  • 1 x Internal speaker

Touch-enabled BIOS

IEI's tBIOS allows users to navigate with finger on a touch-enabled monitor to make BIOS configuration easily. It helps eliminate excessive steps and unnecessary keyboard connection.

Shortcut to boot device setup

The main menu provides quick access to the boot device configuration, helping users save time on boot option priority setting.

Easy-access function keys

The BIOS function keys are arranged vertically on the side of the screen and indicated by icons, so that users can access them without the need of using a keyboard.

On-screen keyboard

An on-screen keyboard is available when it is needed to enter text in BIOS, such as administration password setup.

Various Mounting Methods to Best Fit Your Needs

The {{ store.modelName }} features a 75x75 or 100x100 VESA-mountable design that allows you to mount the display on a monitor stand or on a wall, depending on your specific needs.

Stand Mount

Arm Mount

Wall Mount

Ideal for Diverse Applications

Kiosk

Fitness/Gym Equipment Console

Retail Advertising

Inventory Management

Bus Ticket Machine

Weiging Terminal

I/O Interfaces & Dimensions

  • 1
    1.2 W internal speaker
  • 2
    USB 2.0
  • 3
    HDMI™ output
  • 4
    AT/ATX switch
  • 5
    Power button
  • 6
    12V DC jack
  • 7
    Reset button
  • 8
    2 x USB 3.2 Gen 1
  • 9
    2.5GbE LAN
  • 10
    2 x RS-232/422/485
  • 1
    1.2 W internal speaker
  • 2
    USB 2.0
  • 3
    2.5GbE LAN
  • 4
    2 x USB 2.0
  • 5
    HDMI™ output
  • 6
    2 x RS-232/422/485
  • 7
    12V DC jack
  • 8
    2 x RS-232
  • 9
    2.5GbE LAN
  • 10
    USB 3.2 Gen 2
  • 11
    Power button
  • 12
    Reset button
  • 13
    AT/ATX switch

Related Products


Hardware Spec.

System
CPU Intel® Celeron® Processor J6412 1.5M Cache, up to 2.60 GHz / TDP 10W
On-board Memory on-board dual-channel 8GB LPDDR4x
Storage 1 x M.2 2242 M-key (PCIe Gen3 x1 or SATA)
Communication
Wireless 2T2R Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Support 2.4/5/6GHz ,Bluetooth v5.2
I/O Interface
Ethernet 2 x 2.5GbE LAN via Intel® I225V
Expansion 1 x M.2 M-key 2280 (PCIE Gen3 x2)
Audio Codec Realtek ALC 888S
Power
Input 12V DC
Environment
Operating Temperature -10ºC ~ 50ºC
Safety & EMC CE, FCC Class A
Humidity 10% ~ 95%, non-condensing
Storage Temperature -20ºC ~ 60ºC
Physical Characteristics
Color Black+Silver
Mounting VESA 75, Wall, Stand and Arm
Dimensions (LxWxH) (mm) 327.70 x 203.33 x 47.50
LCD
Size 13.3” (16:9)
Resolution 1920 x 1080
Brightness (cd/m2) 350 nits
Contrast Ratio 800 :1
LCD Color 16.7M
Pixel Pitch (mm) 0.153x 0.153
Viewing Angle (H-V) 170°/170°
Backlight MTBF 50,000 hours
Touch
Touch Screen Multi-point projected capacitive type
(anti-UV / anti-glare coating,support gloves)
Surface hardness: 7H
Touch Controller EETI 80 series
Other Features
Audio 1 x AMP 1.2W (internal speaker)
I/O Interface
I/O Interface 1 x AT/ATX switch
1 x DC Input Jack
1 x HDMI™ (up to 3840*2160 @30Hz)
2 x LAN (Intel® I225V 2.5GbE controller)
1 x Power Switch
1 x Reset Button
2 x RS-232 (by DB9)
2 x RS-232/422/485 (by DB9)
3 x USB 2.0
2 x USB 3.2 Gen2x1 (10Gb/s (Type A))
OS Support
OS Support Windows 10 IoT
Linux

Ordering Information

AFL4-W13-EHL-J1/8G-R10 13.3" 350cd/m² 1920x1080 Fanless Panel PC with Intel® Celeron® Processor J6412 on-board Processor ,TDP 10W, 8GB LPDDR4 on-board , 802.11a/b/g/n/ac/ax WiFi&Bluetooth5.2 module, PCAP touch,R10

Package Contents

Package Content
  • 1 x AFL4-W13-EHL

  • 1 x Power Cord

  • 1 x Power Adapter

  • 1 x QIG
