» Support IEEE 802.3at for PoE (Power over Ethernet) with 30 watts per port
» Support link aggregation/jumbo frames (9 Kbyte)

Hardware Spec.

Form Factor

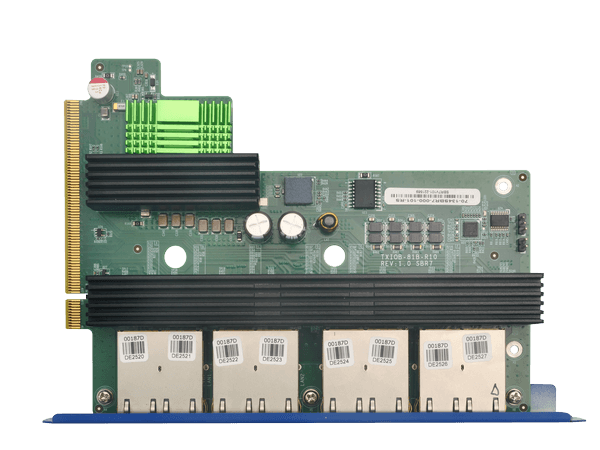

Form Factor TANK-XM81 series customization 8 x PCI Express® x1
System
Chipset Intel® I225-V controller
Physical Characteristics
Dimensions (LxWxH) (mm) 170.94 x 131.22
I/O Interface
Ethernet 8 x LAN(2.5GbE)
Environment
Operating Temperature 0°C ~ 60°C
Humidity 5% ~ 95%, non-condensing
Certifications
Safety & EMC CE/FCC compliant

Ordering Information

TXIOB-XM81-8P2-R10 Tank 81 Series Expansion IO Board module,8x2.5G Lan
GPOE-XM81-8P-R10 Tank 81 Series Expansion IO Board module,8x2.5G Lan With POE

Package Contents

Package Content
  • 1 x Screw pack
