IASO-W10B-N6210

10.1" Medical Panel PC with Intel® Celeron® N6210 processor

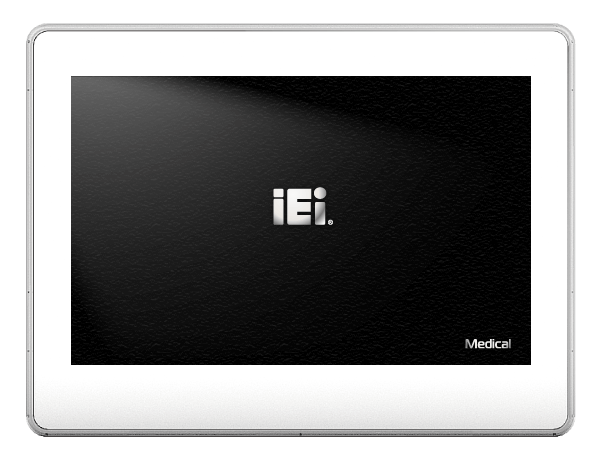

IASO-W10B-N6210 Medical Panel PC
IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
  • IASO-W10B-N6210 Medical Panel PC
  • IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
  • IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
  • IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
  • IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
  • IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
  • IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
  • IASO-W10B-N6210 10.1 inch medical panel PC 10.1" Medical Panel PC with Intel® Celeron® N6210 processor
» Intel® Celeron® Processor N6210
» Programmable LED light bar on both sides
» 10-point PCAP touch with optical bonding
» IEEE 802.3 PoE (optional)
» RFID (NFC) reader (optional)

IEI Product Introduction

Intel® Celeron® N6210 (Elkhart Lake, 6.5W TDP)

CPU TDP 6.5W

Either lower power consumption at the same performance, or higher performance at equal TDP

Integrated gigabit Ethernet (2.5GbE)

Hard real-time—even via standard Ethernet

Up to a 1.7x improvement in single-thread performance

Processor performance boost

Up to a 1.5x improvement in multi-thread performance generation over generation

Processor performance boost

Up to 2x performance improvement in graphics over previous generation

Doubling graphics speed for immersive experiences

Programmable LED Light
Bars on Both Sides

1LED light bars on both sides

Bright and simple outlook with programmable LED lights on both sides. The colorful light and display can be adjusted according to use conditions.

2 Usage scenarios

It can be used to detect the status light signal, or to warn the ward aisle.

3 Programmable LEDs

Each light bar has 10 programmable RGB LEDs with IEC62471 certification.

4 Translucent front frame

The front frame is made of translucent material to make the frame light and thin.

Color Codes for Safety Signs

IEC60601-1-8:General requirements, tests and guidance for alarm systems in medical electrical equipment and medical electrical systems.

ANSI Z535.1-2017:A standard that describes the color codes that can be used on accident prevention signs, labels, and tags. This also includes the marking and location of first aid equipment, fire extinguishers, trip/slip hazards, and other potential hazards or safety equipment.

IEC60601-1-8 ANSI Z535.1-2017

Red

Flashing High priority alarm condition:Immediate action to prevent injury. Fire protection equipment and apparatus,danger signs, containers of flammable liquids,lights at barricades, stop button/switches. (PMS 186)
Not flashing Warning:Avoidance of a HAZARDOUS SITUATION which could cause death or serious injury

Yellow

Flashing Medium priority alarm condition:Prompt action to prevent injury. Specific physical hazards(including falling, tripping and striking) and designating caution(including cabinets, cans and containers for explosives,corrosives or unstable materials).(PMS 109)
Not flashing Caution:Avoidance of a HAZARDOUS SITUATION which could cause minor or moderate injury or equipment damage.

Green

Ready for use Safety information and first aid or safety equipment.(PMS 335)

Orange

The significance of these colors may be defined by the end-user. Signs and equipment designating dangerous or energized machines/equipment.(PMS 151)

Blue

The significance of these colors may be defined by the end-user. Information not immediately safety-related(i.e. property policies including safety gear requirements).(PMS 285)

Purple

The significance of these colors may be defined by the end-user. The significance of purple may be defined by the end-user, but purple(or the combination of purple and yellow) has become the de facto standard for radiation hazards.(PMS 259)

Gray

  • Black
  • White
  • or any combo of these and/ or Yellow
The significance of these colors may be defined by the end-user. The significance of these colors may be defined by the end-user.

RFID Reader (optional)

An RFID dual-band card is capable of reading both 125 kHz and 13.56 MHz credentials.

Hidden RFID Reader

Hidden RFID Reader

Frequency Range Cost Memory Penetration of
Materials
Data Rate Reader Cost Read Multiple
Tags
Applications
LF 125 -
134.2 KHz
0.2 - 2m Typ. 3GBP Typ. 64 bits V. Good Slow 50 - 500 GBP Poor Animal Tags.
Vehicle Immobilisers.
Industrial Applications
HF 13.56 MHz Up to 1m Typ. 0.50GBP Typ. 2048 bits Good Fast 50 - 3000 GBP Good Item Tracking.
Access Control.
Smart Labels

10-Point Touch Screen with Optical Bonding

10-Point touch screen with 6H surface scratch resistance supports control with multiple layers of surgical gloves. Optical bonding can dramatically reduce the internal reflections, help improve the brightness and contrast ratio of the display, enhance system ruggedness, and strengthen shock and vibration resistance.

  • LCD Humid & Dust ProtectionPanel

  • Anti-UV

  • Medical glove touch

  • Reduced Weight

  • Better Visibility

  • Enhanced Durability

  • Optical Bonding

  • Precise Touch Control

Power over Ethernet (optional)

Providing efficient power with less cabling for best performance.

1GbE supporting PoE
(ErP is not supported in PoE mode)

IASO-W10B-N6210 compliant
with IEEE802.3at Class 4 & IEEE 802.3bt Class 5

Class PSE Output(W) PD Input(W) PoE Type Standard
0 15.4 12.95 1 IEEE 802.3af
1 4 3.84 1
2 7 6.49 1
3 15.4 12.95 1
4 30 25.5 2 IEEE 802.3at
5 45 40 3 IEEE 802.3bt
Class PSE Output(W) PD Input(W) PoE Type Standard
6 60 51 3 IEEE 802.3bt
7 75 62 4
8 90 73 4 IEEE 802.3bt

Before

After

Class PSE
Output(W)
PD
Input(W)
PoE
Type
Standard
0 15.4 12.95 1 IEEE 802.3af
1 4 3.84 1
2 7 6.49 1
3 15.4 12.95 1
4 30 25.5 2 IEEE 802.3at
5 45 40 3 IEEE 802.3bt
Class PSE
Output(W)
PD
Input(W)
PoE
Type
Standard
6 60 51 3 IEEE 802.3bt
7 75 62 4
8 90 73 4 IEEE 802.3bt

Before

After

AI Audio Analytics Workflow

IASO-W10B-N6210 provides fully deep learning-based, top-quality AI audio analytics. Real-time detect emergencies in the hospital lounge/ward, including under-staffed areas, restricted areas and surveillance blind spots. Notify staffs to enable faster response and reduce rescue time.

In-Wall Mounting

Easy maintenance – just removing five screws for disassembly

IASO-W10B-N6210 can be embedded in or on the wall.

* NOTE: To avoid damage, do not install the IASO-W10B-N6210 in a fully sealed space.

In-Wall Mounting

Easy maintenance – just removing five screws for disassembly

IASO-W10B-N6210 can be embedded in or on the wall.

* NOTE: To avoid damage, do not install the IASO-W10B-N6210 in a fully sealed space.

I/O Interface

1

Power button

2

1GbE supporting PoE (ErP is not supported in PoE mode)

3

2 x USB 3.2 Gen 1 (5Gbps)

4

HDMI™

5

RS-232

6

Audio jack (TRRS)

7

Reset button

8

AT/ATX switch

9

Clear cmos

10

12V DC jack

Dimensions


Hardware Spec.

Form factor
Form factor
  • Intel® Celeron® Processor N6210
  • Programmable LED light bar on both sides
  • 10-point PCAP touch with optical bonding
  • IEEE 802.3 PoE (optional)
  • RFID (NFC) reader (optional)
System
Cooling method / System Fan Fanless
CPU Intel® Celeron® N6210 (Elkhart Lake, 6.5W TDP)
SSD 1 x M.2 2242 M key (PCIe/SATA signal)
Communication
Bluetooth BT v5.0 (M.2 2230 A-E key)
Wi-Fi IEEE 802.11ax 2T2R module (Wi-Fi 6E)
I/O Interface
Ethernet 1 x Intel® I225 Ethernet Controller
Audio AMP 1W + 1W (internal speaker)
RAM 1 x DDR4 SO-DIMM slot
Power
Input 12V DC jack
Class 5 (IEEE802.3bt) PD device w/ full loading taken on I/O
Power adapter 65W medical grade power adapter
Environment
Operating Temperature -20°C – 40°C
Operating Vibration 1G
Operating Shock Operating shock: 5G peak acceleration (11ms duration)
Non-operating shock: 15G peak acceleration (11ms duration)
Safety & EMC CE, FCC Class B Part18
EN 60601-1: 2006/A1:2013 (Edition 3.1)
EN 60601-1-2: 2015 (Edition 4.0)
Humidity 10% – 95% (non-condensing)
Storage Temperature -20°C – 60°C
IP Level Front: IP65
Physical Characteristics
Mounting Wall, Stand and Arm; VESA 75 compliant
Dimensions (LxWxH) (mm) 261 x 196.4 x 40
Net Weight 1.49 kg
Construction Rear cover: ABS+PC plastic (ENH2900)
Construction Front Panel Front: PC
LCD
Size 10.1" (16:10)
Resolution 1280 x 800
Brightness (cd/m2) 400
Contrast Ratio 800:1
LCD Color 16.7M (RGB 6-bit + Hi-FRC)
Pixel Pitch (mm) 0.1695 x 0.1695
Viewing Angle (H-V) 178˚/178˚
Backlight MTBF 30,000 (LED backlight)
Touch
Touch Screen Projected capacitive type with 10-point multi-touch and optical bonding
Touch Controller EETI
Other Features
Audio AMP 1W + 1W (internal speaker)
LED Light Bar 2 x LED light bar
Microphone 1 x Digital microphone
I/O Interface
I/O Interface 1 x AT/ATX Switch
1 x Audio(jack (TRRS))
1 x HDMI™(output)
1 x LAN(2.5GbE supporting PoE (with 1.5kV isolation))
1 x Reset Button
1 x RS-232
2 x USB 3.2 Gen1x1(5Gb/s)

Ordering Information

IASO-W10B-N6210/4G-R10 10.1" 400cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, one 4GB DDR4 RAM,Wi-Fi 6E module, PCAP touchscreen
IASO-W10B-N6210/4G/PoE-R10 10.1" 400cd/m² medical panel PC with Intel® Elkhart Lake TDP 6.5W Celeron® N6210, one 4GB DDR4 RAM,Wi-Fi 6E module, PCAP touchscreen, IEEE802.3 PoE

Package Contents

Package Content
  • 1 x Power Adapter

  • 1 x Power Cord
